9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.

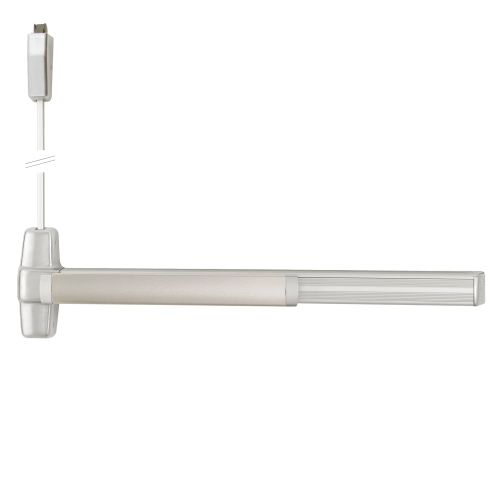

EL9927EO 4 26D LBR Von Duprin Exit Device
Regular Price $4,267.00 -41% Special Price $2,530.52
Availability: Available for Order
SKU
VON100EL9927EO426DLBR
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 48" Panic Device, 84" Door Height, Exit Only, Less trim, Less Bottom Rod, Electric Latch Retraction, Less Dogging, Satin Chrome Finish, Field Reversible
Description
Specifications
| Series | 9927 Series Surface Vertical Rod Exit Device |
|---|---|
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| Color | Satin Chrome |
| ANSI | A156.3 2014, Grade 1 |
| BAA Qualified | Yes |
| Fire Rating | No |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 1 Year |
| Origin | USA |
| Finish Family | Matte Silver |
| Cylinder Type | Non-Keyed |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| UL Listing | UL 305 |
Details
Surface mounted vertical rod device.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8" (1006 mm)
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw
- Door undercut 1 /4" (7mm) recommended
- Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
- Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
9927 series surface vertical rod exits are made for high traffic environments.
