967244 26D Von Duprin Exit Device

An option ideal for high-occupancy spaces such as auditorium-style classrooms with access control, ESL allows occupants to secure an opening in case of emergency.

• Lockdown solution that meets fire and life safety codes for free egress
• Labels provide a clear direction of rotation to secure opening

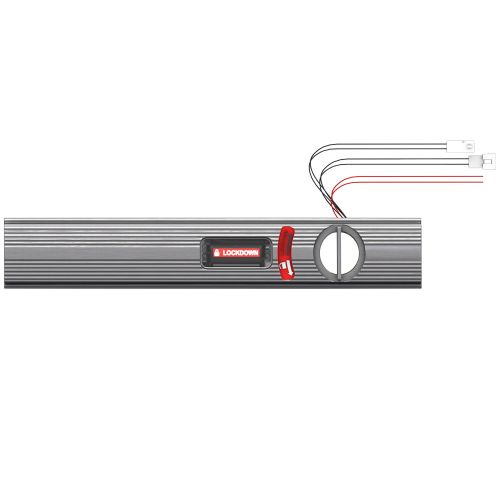

• Visual indicator on mechanism case cover includes a white, non-descript (blank) window for everyday use and red LOCKDOWN, when activated
• Lockdown action interrupts power and extends latchbolt to secure pull side of door as well as sends signal to access control system
• When emergency lockdown is activated card access system no longer operates QEL
• Physical access is obtained by key override from pull side in lockdown mode
• Available for 98/99 and 33A/35A series exit devices that have QEL latch retraction
• Modular conversion kits allow quick and easy upgrade of existing devices
• Allows for scheduled electronic dog/undog or credential access during normal day-to-day use

In the event lockdown is necessary, students or teachers can turn the thumb turn (or cylinder key) of the ESL option installed in the exit device. This action interrupts power to the QEL motor, electronically undogging (extending the latchbolt) to secure pull side of the door as well as sends a signal to the access control system. The visual indication assures the occupant the exit device has been put into secure lockdown mode. Free egress out of the room is maintained from the exit side of the door, while access into the room can only be performed with a key.
