SmartWire Composite Access Control Cable Non-Plenum 4 Element 500'

Description:

Element 1: 18 AWG 4 Conductor Bare Copper;

Element 2: 22 AWG 3 Pair OAS Bare Copper;

Element 3: 22 AWG 2 Conductor Bare Copper;

Element 4: 22 AWG 4 Conductor Bare Copper

Non-Plenum Composite Cable UL Type CMR, C(UL)

Conductor Description:

Element 1: 18(Stranded Bare Copper);

Elements 2, 3 & 4: 22 (Stranded Bare Copper)

Insulation:

All Elements: PVC .008" Nom.

Color Code:

Element 1: Black/Red/White/Green;

Element 2: Black/Red, White/Green, Brown/Blue;

Element 3: Black/Red;

Element 4: Black/Red/White/Green Shield:

Elements 1, 3 & 4: N/A;

Element 2: Overall Aluminum Mylar Drain Wire:

Elements 1, 3 & 4: N/A;

Element 2: 24 AWG 7 Strand Tinned Copper Jacket:

Inner Jackets: PVC .018";

Outer Jacket: PVC .020" Marking:

Element1: LOCK POWER A B C D E 0 1 2 3 4 5 6 7 8 9;

Element 2: CARD READER A B C D E 0 1 2 3 4 5 6 7 8 9;

Element 3: DOOR CONTACT A B C D E 0 1 2 3 4 5 6 7 8 9;

Element 4: REX/SPARE A B C D E 0 1 2 3 4 5 6 7 8 9;

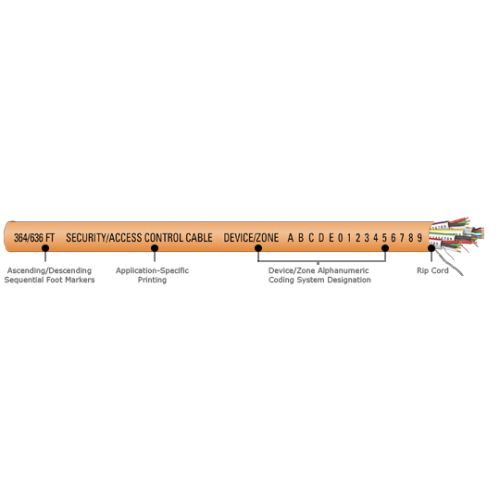

Outer Jacket:

SMARTWIRE ACCESS CONTROL CABLE DOOR / ZONE A B C D E 0 1 2 3 4 5 6 7 8 9 UL C(UL)CMR

Overall Diameter: .415" Nom.

Conductor DCR:

Elem 1: 6.66 Ohms/Mft.;

Elem 2, 3 & 4: 16.9 Ohms/Mft.

Capacitance:

Elem 1: 27 pF/Ft. Nom.;

Elem 2: 51 pF/Ft. Nom.;

Elem 3 & 4: 20 pF/Ft. Nom.

Impedance:

Elem 1: 70 Ohms/Mft.; Elem 2: 37 Ohms/Mft.;

Elem 3 & 4: 94 Ohms/Mft.

Temperature & Voltage Rating: 0 C to 75 C / 300 Volt

Cable Weight: 48.50 Lbs/Mft.
