A reliable ADA solution comprising Norton's heavy-duty 1601 door closer. The use of a hydraulic closer ensures quiet and consistently smooth operation, ideal in applications where doors are typically operated manually but can also be activated via wall switches for automatic operation. The 5700 offers basic automated door functions and is designed for quick set-up, making it easy to specify and install.

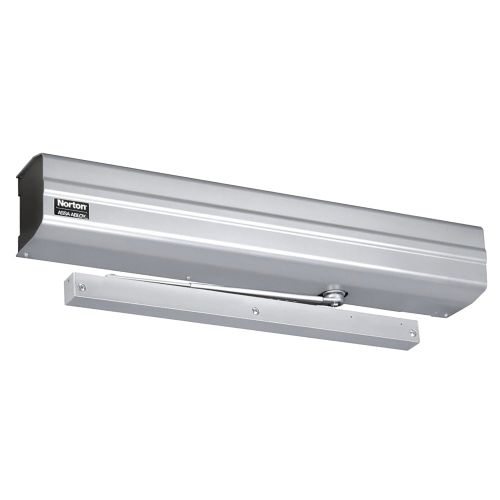

5710-RF1 689 Norton Door Closers and Operator
Regular Price $5,600.00 -51% Special Price $2,759.68
Availability: 7 available for order
SKU
NOR5710RF1689
5710-RF1 689 Norton Door Closers and Operator is available to buy in increments of 1
Low Energy Surface Mounted Electrohydraulic Door Operator, Slide Track Arm Standard, Pull Side Mounted, 29" - 36" Door, Radio Frequency Unit, 110 Deg. Swing, Aluminum Painted Finish
Description
Specifications
| Series | 5700 Series Operators |
|---|---|
| Vendor | ASSA Abloy |
| Manufacturer | Norton |
| BAA Qualified | Yes |
| Installation | Commercial |
| Limited Warranty | 2 Years |
| Origin | USA |
| Finish Family | Matte Silver |
| Arm Type | Slide Track Arm, Standard |
| Back Check | Adjustable |
| Cover | Full |
| Degree Swing | 110 Deg. |
| Mounting Group | Electrohydraulic |
| Mounting Location | Pull Side |
| Mounting Style | Slide Track |
| Type | Surface |
Details
The 5700 Series design is based on ease and simplicity.
- Door Controls (interior) (exterior) swinging door(s) shall be of rack and pinion design contained within a precision cast aluminum housing.
- Door closing force shall be adjustable to ensure adequate closing control.
- Door closing speed shall be controlled by independent hydraulic adjustment valves in the sweep and latch range of the closing cycle.
- Door Operator shall provide conventional door closer opening forces unless the power operator motor is activated.
- Door Operator shall provide conventional door closing forces at all times except in the event of power outage during powered door open cycle.
- Door Operator opening force and speed shall be adjustable by independent electronic adjustment to ensure adequate opening control per accessibility codes.
- Door Operator shall have an adjustable hydraulic backcheck valve to cushion the door speed if door is opened violently.
- Door Operator shall have a manual adjustment to locate both full open and full closed door positions.
- Maximum door open shall be adjustable and capable to a maximum 180° conditions permitting. [(Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e., wall switch, etc.)]
- Door operator shall have adjustable hold open time capability in range from 5 to 30 seconds.
- Door operator shall have input line rating of 120VAC, .6A or 240VAC, .3A.
- Units shall have relay contact for interfacing products having a contact rating of 30VDC at 1A or 125VAC at .5A.
- Unit shall have an external On/Off Switch to defeat powered opening when desired.
- Unit shall have an internal circuit breaker switch to interrupt input power for servicing.
- Unit shall be U.L. Listed for automatic closing door.
- Unit shall be in compliance with the requirements of the Americans With Disabilities Act (ADA), ANSI standards A117.1 and A156.19.
- Unit shall meet C-UL US.
This unit installs in minutes rather than hours and consists of three basic components: inverter, motor and Norton's 1601 closer body. Quiet and dependable, the 5700 meets the requirements of the Americans with Disability Act (A.D.A.) and ANSI/BHMA A156.4. Available push- or pull- side mounting, this unit is perfect for applications that don't require special features but demands reliability.
