The Arrow 7800 & 7900 Series Powered Door Operators are low-energy operators which function as standard spring-force closers during close cycles when a door is opened manually, or if power is lost or turned off. The 7800 is a hard wired door operator ideal for doctors offices, retirement facilities, schools, churches, and other applications where noise may be a concern.

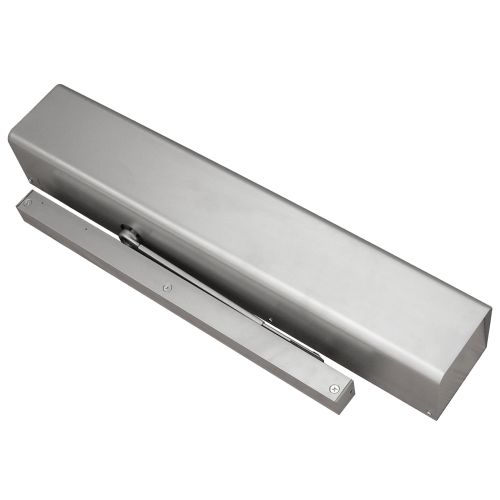

7836HR AL Arrow Door Closers and Operator
Regular Price $5,600.00 -25% Special Price $4,202.24
Availability: Available for Order
SKU
ARR1007836HRAL
7836HR AL Arrow Door Closers and Operator is available to buy in increments of 1
Low Energy Surface Mounted Electrohydraulic Door Operator, Slide Track Arm Standard with Adjustable, Pull Side Mounted, 29"-36" Single Doors, 30"-36" Double Doors, Radio Frequency Unit, 180 Deg. Swing, Aluminum Painted Finish
Description
Specifications
| Series | 7800 Series Door Operators |
|---|---|
| Vendor | ASSA Abloy |
| Manufacturer | Arrow |
| Color | Aluminum Painted |
| ANSI | A156.19 |
| Installation | Commercial |
| Limited Warranty | 2 Years |
| Finish Family | Matte Silver |
| Arm Type | Slide Track Arm, Standard |
| Back Check | Adjustable |
| Cover | Less Cover |
| Degree Swing | 180 Deg. |
| Hold Open | Yes |
| Mounting Group | Electrohydraulic |
| Mounting Location | Pull Side |
| Mounting Style | Slide Track |
| Type | Surface |
| UL Listing | UL/cUL |
Details
Low-energy operator which functions as standard spring-force closer during close cycles when a door is opened manually, or if power is lost or turned off.
- Environmental Product Declaration certified
