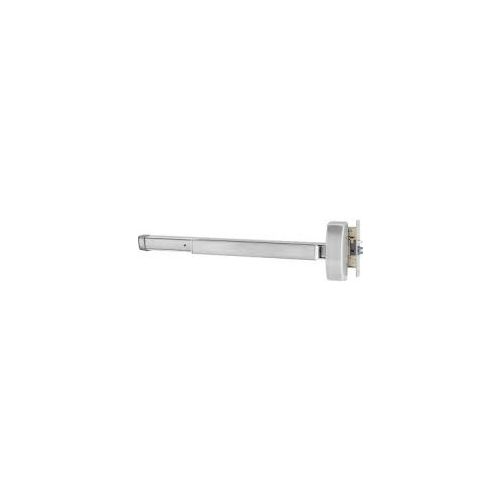

Adams Rite 3300-7036-US32D Mortise Exit Device
Adams Rite 3300-7036-US32D Mort Dev Fire-Rtd 36 In Rh 32D Fire Rated Mortise Device Right Hand Reverse 36 Inch
The 3300 Series Fire-Rated Mortise Exit Device is designed for hollow metal and wood applications that require a fire-rated exit device with mortise locking solution.
Designed for use in applications with single doors or pairs of doors.
| Manufacturer Part Number | 3300-7036-US32D |
|---|---|
| Features | Features:Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes. Handing: Specify handing and bevel if applicable. Push bar Length: Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42"[1,066.8 mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width. Backset: 2-3/4" [69.9 mm] only Door Thickness: Suits 1-3/4" [44.5 mm] standard. Can be modified for thicker doors. Stile Width: Minimum 5" [127.0 mm]. Door construction may require additional stile width to meet fire ratings and provide adequate strength. Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged. Dogging: Standard dogging with hex key or with cylinder not available on fire-rated exit devices. Electric dogging option available only. Fasteners: Standard self-tapping screws and machine screws. Optional Sex Bolt Kits 26-0584 (two required per device) available separately. Cylinders: Accepts any standard 1" [25.4 mm] length,1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to1-1/4" [31.8 mm]. Available separately. Cylinder x Fixed Pull Functions: For function 03 (Night latch – key releases latch) select any standard 1" [25.4 mm] length, 1-5/32"[29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Entry Trim Functions: For entry trim function 08 (key locks/unlockslever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32"[29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm]. Available separately. Bolts and Strikes: Mortise deadlatch with bolt measuring 5/8" x 1" x 5/8" [15.9 mm x 25.4 mm x15.9 mm] throw. Solid brass bolt. A variety of strikes are availablefor different applications: Standard Package: Individually boxed. Shipping Weight: 11 lbs [4.99 kg] |
Features:
Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
Handing: Specify handing and bevel if applicable.
Push bar Length: Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42"[1,066.8 mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
Backset: 2-3/4" [69.9 mm] only
Door Thickness: Suits 1-3/4" [44.5 mm] standard. Can be modified for thicker doors.
Stile Width: Minimum 5" [127.0 mm]. Door construction may require additional stile width to meet fire ratings and provide adequate strength.
Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
Dogging: Standard dogging with hex key or with cylinder not available on fire-rated exit devices. Electric dogging option available only.
Fasteners: Standard self-tapping screws and machine screws. Optional Sex Bolt Kits 26-0584 (two required per device) available separately.
Cylinders: Accepts any standard 1" [25.4 mm] length,1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to1-1/4" [31.8 mm]. Available separately.
Cylinder x Fixed Pull Functions: For function 03 (Night latch – key releases latch) select any standard 1" [25.4 mm] length, 1-5/32"[29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder.
Entry Trim Functions: For entry trim function 08 (key locks/unlockslever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32"[29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm]. Available separately.
Bolts and Strikes: Mortise deadlatch with bolt measuring 5/8" x 1" x 5/8" [15.9 mm x 25.4 mm x15.9 mm] throw. Solid brass bolt. A variety of strikes are availablefor different applications:
• Standard strike of stainless steel included, Open Back Strike 4009-01 available separately.
Standard Package: Individually boxed.
Shipping Weight: 11 lbs [4.99 kg]
