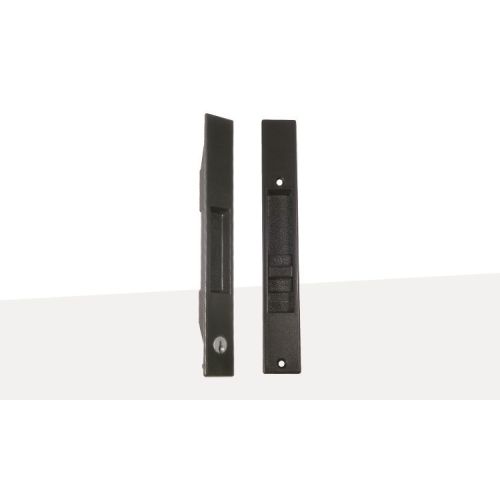

Adams Rite 4430-09-00-00-IB ABS Flush Lockset
ABS Flush Lockset without Cylinder, Radius Lock Face, 1" to 1-5/16" Stile Thickness
The 4430 and 4431 Flush Locksets for sliding doors combine the time-tested and field-proven Adams Rite MS1847 with a slide button. Similar in function and nearly identical in size to the all-metal 4189, 4190 Flush Locksets, these economical units feature escutcheons molded of sturdy ABS resin. The black satin finish of the 4430, 4431 Flush Locksets lends elegance to aluminum doors. Not recommended for wood doors. Locksets operated from inside by a simple up or down movement of a slide button, set flush in the deeply recessed finger pull. The lock mechanism (latching action unavailable) is the time-tested and field-proven Adams Rite MS1847 Deadlock and features the adjustable, self-protecting bolt.
| Manufacturer Part Number | 4430-09-00-00-IB |
|---|---|
| Features | Backset: Variable, minimum 5/8" [15.9 mm], maximum 1-9/32" [32.5 mm] from face of lock to escutcheon and cylinder centerline. Stile Depth: Minimum clear depth: Backset plus 9/16" [14.3 mm]. Escutcheons: Molded ABS resin plastic. Black Satin finish. Deeply recessed finger pull on both sides. Fits same cutout as metal 4189, 4190 Flush Locksets. Anti Lift Lock Mechanism: Basic MS1848-09 (radius ends) or MS1848-10 (square ends) is supplied. Stainless stee lbolt is self-protecting, adjustable for reach. Operation: Standard Package: 4431, with cylinder, and 4430, without cylinder, are each complete packages. Shipped individually boxed with mounting screws. 4431 includes two keys. Standard 4431 units are keyed different (KD). Contact factory for special keying. Shipping Weight: 1-1/4 lbs [.57 kg]. |
Backset: Variable, minimum 5/8" [15.9 mm], maximum 1-9/32" [32.5 mm] from face of lock to escutcheon and cylinder centerline.
Stile Depth: Minimum clear depth: Backset plus 9/16" [14.3 mm].
Escutcheons: Molded ABS resin plastic. Black Satin finish. Deeply recessed finger pull on both sides. Fits same cutout as metal 4189, 4190 Flush Locksets.
Anti Lift Lock Mechanism: Basic MS1848-09 (radius ends) or MS1848-10 (square ends) is supplied. Stainless stee lbolt is self-protecting, adjustable for reach.
Operation:
Inside: Vertical slide button projectsor retracts deadlock bolt.
Outside: 4431 features a key in, fivepincylinder with Schlage “C” keyway, projects or retracts bolt. Other cylinder makes not available.
Standard Package: 4431, with cylinder, and 4430, without cylinder, are each complete packages. Shipped individually boxed with mounting screws. 4431 includes two keys. Standard 4431 units are keyed different (KD). Contact factory for special keying.
Shipping Weight: 1-1/4 lbs [.57 kg].
