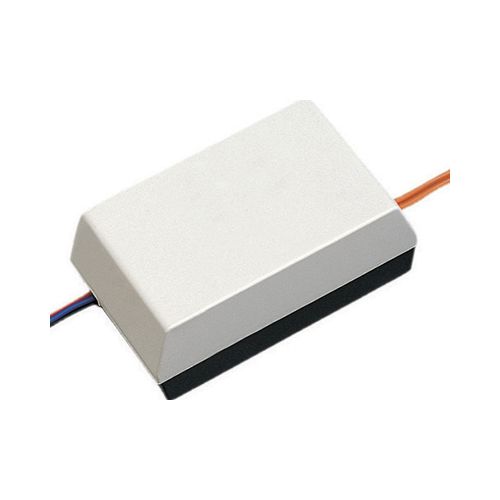

The RY-ES is a relay used to activate an external signaling device when the door station calls in. It can be used for call extension on the JK, JF, JM, JO, KB, AX, NEM, DB, and IE systems. The relay connects to the chime output of the master in place of the IER-2. The systems power supply powers the input of the RY-ES relay. A separate power source is required for the external device.
More Information
Manufacturer Part Number
RY-ES
Features
CAT-5e wiring homerun from each station
Up to 8 masters and 120 remote stations
Two talk channels
PTT or VOX operation
Master-to-master selective calling
All Call between master stations only
Composite video output from CEU and master station
Standard or priority call levels from door stations
Communication privacy
Electronic access control integration*
CCTV system integration*
Selective remote control (e.g. door release)
PC interface for programming and event logging
Scan monitoring of selected remote stations
Rack or wall mountable CEU
Calls queued in order of priority and call-in time
Compatible with IE Series door stations
Optional features: headset, footswitch, call transfer to telephone* and PC remote control
* Interface requires custom program (not supplied by Aiphone)
