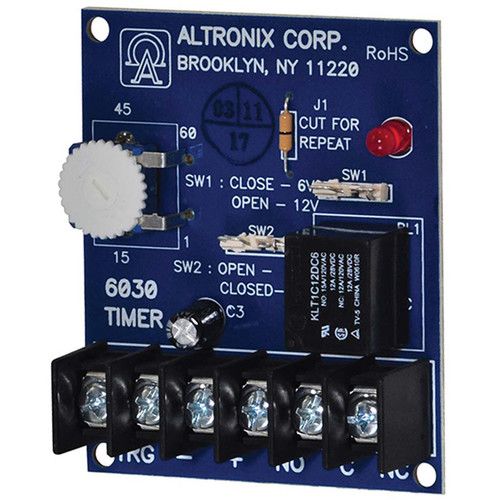

ALTRONIX 6030 Siren/Bell Cut-off / Delay Timer (6/12 VDC)

The 6030 programmable timer is suitable for most functions that require a timed operation e.g. Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, Pulser / Flasher, etc. • 6VDC or 12VDC operation is selectable. • Quick and extremely accurate time range adjustment from 1 second to 60 minutes. • LED indicates relay is energized. • Form "C" relay contacts are 5 amp at 120VAC/28VDC. • Current draw stand by 3mA relay energizes at 75mA. • Repeat (flasher/pulse) mode. • Relay activates at the end of the timing cycle Board Dimensions: 3"L x 2.5"W x .75"H
