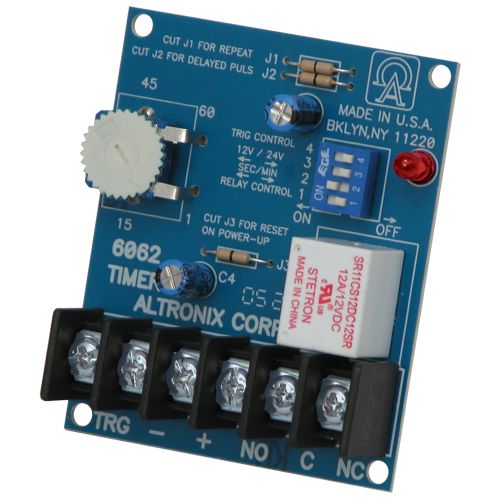

6062 programmable timer is suitable for many functions that require a timed operation e.g. Access Control Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, etc. Some optional functions include: One Shot, Delayed Release, Delayed Operate, Delayed Pulse and Pulser/Flasher.
More Information
Manufacturer Part Number
6062
Features
Input
12VDC or 24VDC operation is selectable.
Current Draw
Stand-by: 3mA, Relay energized: 40mA.
Relay
Selectable relay activation at the start or end of the timing cycle.
One (1) second momentary relay activation at the end of the timing cycle (eliminates the need to use two (2) timers for this function).
Features
Triggers via positive DC (+) voltage, dry contact closure, or removal of contact closure.
Quick and extremely accurate time range adjustment from 1 second to 60 minutes.
Built-in reset feature which cancels timing cycle.
Repeat (flasher/pulse) mode.
Visual Indicators
LED indicates relay is energized.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
Write Your Own Review
Input
12VDC or 24VDC operation is selectable.
Current Draw
Stand-by: 3mA, Relay energized: 40mA.
Relay
Selectable relay activation at the start or end of the timing cycle.
One (1) second momentary relay activation at the end of the timing cycle (eliminates the need to use two (2) timers for this function).
Features
Triggers via positive DC (+) voltage, dry contact closure, or removal of contact closure.
Quick and extremely accurate time range adjustment from 1 second to 60 minutes.
Built-in reset feature which cancels timing cycle.
