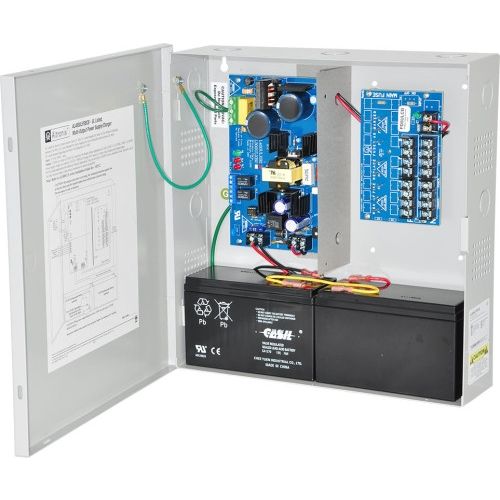

Altronix AL400ULPD8CB Power Supply Charger
Special Price $203.16 Regular Price $369.60 -45%
Availability: Available for Order
SKU
ALT-AL400ULPD8CB
8 OUTPUT POWER SUPPLY/ CHARGER12-VDC@ 4
Power Supply Charger, 8 PTC Class 2 Outputs, 12/24VDC @ 4A, 115VAC, BC300 Enclosure
| Manufacturer Part Number | AL400ULPD8CB |
|---|---|
| Features |
|
Write Your Own Review
-
Input
- Input 115VAC, 60Hz, 3.5A.
- Input fuse rated @ 3.5A/250V.
-
Output
- 12VDC or 24VDC selectable output.
- 12VDC @ 4A or 24VDC @ 3A supply current.
- Eight (8) Class 2 Rated PTC protected powerlimited outputs (auto-resettable).
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
-
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
-
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
-
Visual Indicators
- AC input and DC output LED indicators.
-
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70°C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
-
BTU/Hr (approx.):
- 12VDC: 25 BTU/Hr.
- 24VDC: 37 BTU/Hr.
- System AC input VA requirement: 402.5VA.
