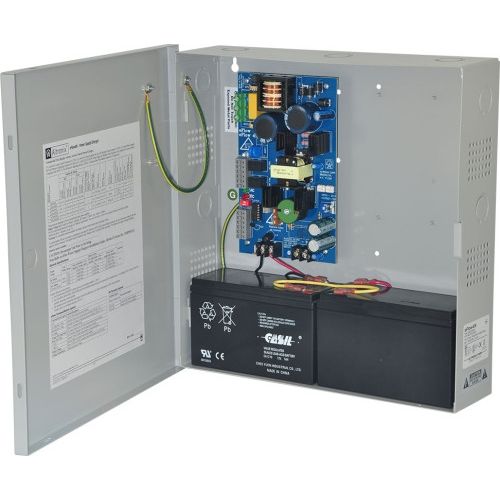

Altronix eFlow4N Power Supply Charger, Single Output, 12/24VDC @ 4A, Aux Output, FAI, LinQ2 Ready, 115VAC, BC300 Enclosure

Be the first to review this product

Special Price $209.16

Regular Price $380.53 -45%

Availability: Available for Order

SKU

ALT-EFLOW4N

Notify me when the price drops

TEMP UNAVAIL Recommended (AL400ULX)

Power Supply Charger, Single Output, 12/24VDC @ 4A, Aux Output, FAI, LinQ2 Ready, 115VAC, BC300 Enclosure

More Information
Manufacturer Part Number	EFLOW4N
Features	Input 120VAC, 60Hz, 3.5A. Input fuse: 5A/250V. Output 12VDC or 24VDC selectable output. 12VDC or 24VDC @ 4.0A supply current. Class 2 power-limited output. Auxiliary Class 2 Power-Limited output rated @ 1A (unswitched). Overvoltage Protection. Battery Backup Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption. Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 2 hours. Battery fail & presence supervision (form "C" contacts). Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Fire Alarm Disconnect Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 12 BTU/Hr. 24VDC: 49 BTU/Hr. System AC input VA requirement: 420VA. Visual Indicators Green AC Power LED indicates 120VAC present. AC input and DC output LED indicators. Additional Features Short circuit and overload protection. Unit is complete with power supply, enclosure, battery leads and cam lock

Input
- 120VAC, 60Hz, 3.5A.
- Input fuse: 5A/250V.
Output
- 12VDC or 24VDC selectable output.
- 12VDC or 24VDC @ 4.0A supply current.
- Class 2 power-limited output.
- Auxiliary Class 2 Power-Limited output rated @ 1A (unswitched).
- Overvoltage Protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
- Battery fail & presence supervision (form "C" contacts).
- Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Fire Alarm Disconnect
- Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
Electrical
- Relative Humidity 85% +/- 5%.
- System AC input VA requirement: 420VA.
Visual Indicators
- Green AC Power LED indicates 120VAC present.
- AC input and DC output LED indicators.
Additional Features
- Short circuit and overload protection.
- Unit is complete with power supply, enclosure, battery leads and cam lock
