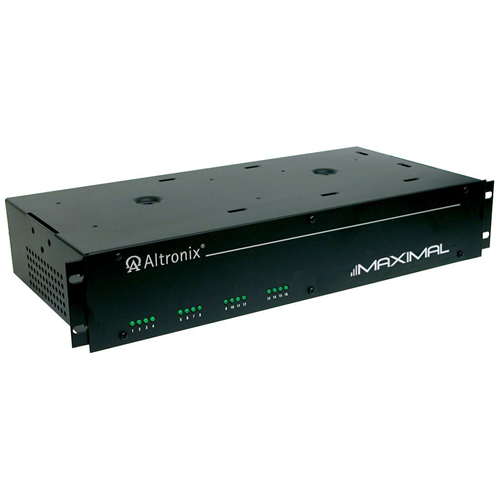

Altronix Maximal33RD Access Power Controller

Be the first to review this product

Special Price $685.57

Regular Price $1,247.26 -45%

Availability: Available for Order

SKU

ALT-MAXIMAL33RD

Notify me when the price drops

2 PSU CHARGERS W ACCESS POWERCONTROLLERS

Access Power Controller w/ Power Supply/Chargers, 16 PTC Relay Outputs, Dual 12/24VDC P/S @ 6A each, 115VAC, 2U

More Information
Manufacturer Part Number	MAXIMAL33RD
Features	Input 115VAC 60Hz., 3.8A. Normally closed [NC] or normally open [NO] dry contact inputs (switch selectable). Outputs 12VDC or 24VDC @ 12A total output current. Power supply 1 / (8) outputs: 12VDC @ 6A or 24VDC @ 6A. Power supply 2 / (8) outputs: 12VDC @ 6A or 24VDC @ 6A. Sixteen (16) PTC protected outputs (auto-resettable). Maximum current per ACM8R-M output is 2A. Individually selectable Mag Lock/Strike (Fail-Safe, Fail-Secure) solid state fuse protected outputs. Thermal and short circuit protection with auto reset. Fire Alarm Interface Latching or Non-Latching fire alarm reset switch individually selectable for each output. Remote reset capability for latching Fire Alarm Interface mode. Fire Alarm disconnect input options: a) Normally open [NO] or normally closed [NC] dry contact input. b) Polarity reversal input from FACP signaling circuit. Visual Indicators Individual Output Status LEDs located on the front panel. Battery Backup Built-in charger for sealed lead acid or gel type batteries (if batteries are required install separate enclosure). Automatic switch over to stand-by battery when AC fails. Zero voltage drop when unit switches over to battery backup (AC failure condition). Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery and battery presence supervision (form "C" contact). Additional Features Removable terminal blocks with locking screw flange. 3-wire line cord. Illuminated master power disconnect circuit breaker with manual reset. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 74 BTU/Hr. 24VDC: 141 BTU/Hr. 12VDC and 24VDC: 106 BTU/Hr. System AC input VA requirement: 437VA.

Input
- 115VAC 60Hz., 3.8A.
- Normally closed [NC] or normally open [NO] dry contact inputs (switch selectable).
Outputs
- 12VDC or 24VDC @ 12A total output current.
- Sixteen (16) PTC protected outputs (auto-resettable).
- Maximum current per ACM8R-M output is 2A.
- Individually selectable Mag Lock/Strike (Fail-Safe, Fail-Secure) solid state fuse protected outputs.
- Thermal and short circuit protection with auto reset.
Fire Alarm Interface
- Latching or Non-Latching fire alarm reset switch individually selectable for each output.
- Remote reset capability for latching Fire Alarm Interface mode.
Visual Indicators
- Individual Output Status LEDs located on the front panel.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries (if batteries are required install separate enclosure).
- Automatic switch over to stand-by battery when AC fails.
- Zero voltage drop when unit switches over to battery backup (AC failure condition).
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery and battery presence supervision (form "C" contact).
Additional Features
- Removable terminal blocks with locking screw flange.
- 3-wire line cord.
- Illuminated master power disconnect circuit breaker with manual reset.
Electrical
- Relative Humidity 85% +/- 5%.
- System AC input VA requirement: 437VA.
