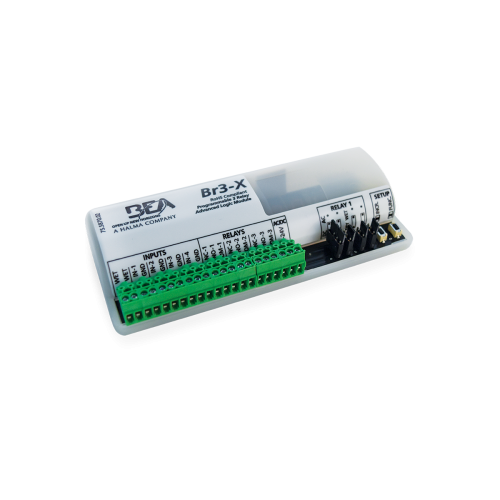

BEA’s Br3-X provides both simple and advanced logic controls. Common uses for the Br3-X include automatic pedestrian doors, access control, industrial automation and single-occupancy restrooms.
Functions include: timer, ratchet/latching, inhibitor, 2 relay sequencer + inhibitor, 2 relay sequencer + door position deactivation timer, 3 relay sequencer + 1-Shot, 3 relay sequencer with independent relay, interlock timer, interlock ratchet / latching, 2 way 2 relay sequence, normally locked restroom, normally unlocked restroom, 3 relay sequencer + Day/Night mode.
More Information
Manufacturer Part Number
10BR3-X
Features
Logic module with integrated 900 MHz wireless technology eliminates the need for separate logic module and wireless receiver (Br2-900)
Sequenced or simultaneous relay activation for application flexibility (Br2-900)
2-AMP relays allow the direct release of an electric locking device wirelessly, eliminating the need for a separate logic module or isolation relay (Br2-900)
Extended Hold Mode allows wireless push plates to function like hardwired push plates (if push plate is held, relay does not time out) (Br2-900)
Wireless functionality eliminates the need to run input wires directly to the logic module, saving both time and money (Br2-900)
Dry auxiliary input for overriding Day / Night Mode (Br2-900)
Versatility with 13 programmable logic functions for the BR3-X
Two 3-AMP relays and one 1-AMP relay, all with built-in surge suppression, eliminates the need for external components when installing some electric locking devices (BR3-X)
WET output with AC / DC voltage for powering an electric locking device directly from the module (BR3-X)
