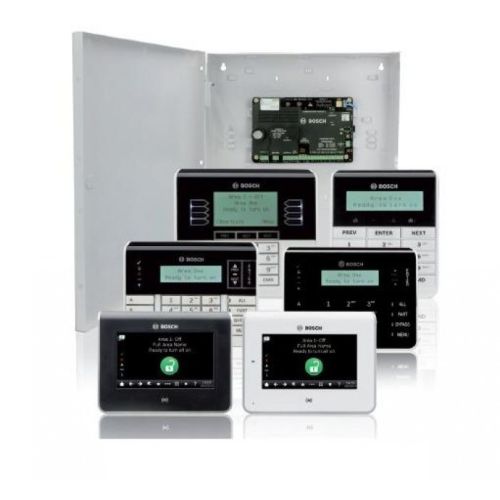

Bosch B4512-D-930 Intrusion Alarm System Control Panel Kit

Kit Includes B4512, B11, CX4010, B930.

The B4512 Control Panel integrates intrusion and residential fire, providing one simple user interface for both systems. The B4512 provides up to 28 individually identified points that can be split into 2 areas. The control panel includes a built-in Ethernet port for IP network communications, and is compatible with modules that send events to selected public switched telephone network (PSTN), IP network, or cellular network destinations through four programmable route groups. With the B4512, you can monitor doors, windows, and motion within areas like showrooms or those that hold inventory. Each user can have a personalized passcode, a wireless keyfob, and a credential to control the system.

The B11 Small Control Panel Enclosure houses many Bosch control panels and modules. The enclosures are compatible with an enclosure tamper switch (D110 or ICP-EZTS), lock and key set (D101), and can hold one battery (up to 7 Ah).

The CX4010 is for use in North America. It converts 110 VAC primary voltage input to 18 VAC, 22 VA secondary input.

The B930 ATM Style Alphanumeric Keypad (SDI2) is a SDI2 bus compatible device. Each keypad has user adjustable options such as volume and display brightness. The B930 shows five-line system messages for all areas.
