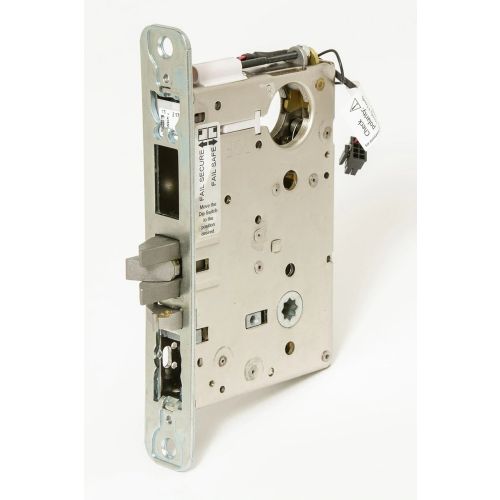

Corbin Russwin ML20906 PSA 626 SEC Fail Secure
Special Price $821.10 Regular Price $1,408.00 -42%
Availability: Available for Order
SKU
ML20906 PSA 626 SEC
Corbin Russwin ML20906 PSA 626 SEC Fail Secure is available to buy in increments of 1
Corbin Russwin ML20906 PSA 626 SEC Utilizing the ML2000 Series Grade 1 Mortise Lock with the patented quick reversible latchbolt, the ML20900 Series provides actuator operated remote locking and unlocking. The self contained integral continuous duty aqctuator allows installation in standard mortise prep with slight modification. The ML20900 ECL is ideal for use where increased security is necessary at all times, such as tenant space, pharmacies, computer rooms and high security areas. THe ML20900 Series features Ecoflex Technology, reducing energy consumption up to 96% as certified by GreenCircle. It is field configurable to fail safe or fail secure and operates off 12-24VDC.
ML20900 Series Electrified Mortise Locks
Th ML20900 Electric Mortise Lock Series combines simplicity and reliability.
Utilizing the proven ML2000 Series mortise lockset with the patented quick reversible latchbolt, the ML20900 series provides remote locking and unlocking. The electrified lock can be installed in a standard mortise prep with slight modification by door manufacturer.
- Handing Handed; quick reversible. The lockset can be re-handed without disassembling the lockcase.
- Door Thickness 1-3/4" (44mm) standard. Optional door thicknesses available; see Quick Codes
- Backset 2-3/4" (70mm).
- Lockcase Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
- Front Heavy gauge steel, 8" (203mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
- Armored Front Wrought brass, bronze or stainless steel attached by machine screws to lockcase front.
- Latchbolt 2-piece mechanical anti-friction insert, 5/8" (16mm) x l" (25mm) x 3/4" (19mm) throw.
- Auxiliary Latchbolt 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.
- Hub • Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm). • Lever: steel, 5/16" (8mm). (Including ) • 3/8" (10mm) stainless steel.
- Spacing C. to c. knob/lever to cylinder: 3-5/8" (92mm) C. to c. knob/lever to thumbturn: 2-7/16" (62mm).
- Strike Wrought brass, bronze or stainless steel ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8'' (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available.
- Trim Available with all ML2000 Series trim designs including the Vineyard™ Collection and the Muséo® Collection
- Environmental Product Declaration (EPD) certified
| Manufacturer Part Number | ML20906 PSA 626 SEC | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Features |
| ||||||||||||||||||||||||||||||||||||||||||||
Write Your Own Review
| Technical Specs | |
| Function | 06xSEC-Fail Secure |
| Lever/Knob Design | PS - Princeton |
| Rose/Escutcheon Design | A - Rose |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Keyway | L4 |
| Keying | 0 Bitted |
| Key(s) | Blank |
| Number of Keys | 2 |
| Hand | Field Reversible |
| Door Thickness | 1-3/4" |
| Bolt Projection | 3/4" Latchbolt |
| Strike Number | 236L72018 |
| Strike Type | ASA |
| Strike Height | 4-7/8" |
| Strike Width | 1-1/4" |
| Screws | Combination |
| Power | Hard Wired |
| Operating Voltage | 12VDC/24VDC |
| Amp Draw | 500mA Peak, 15mA Holding |
| Product Type | Electric Mortise Lock |
