DL4113 626 LC Corbin Russwin Locks, Cylinders, Cores, Keyblank

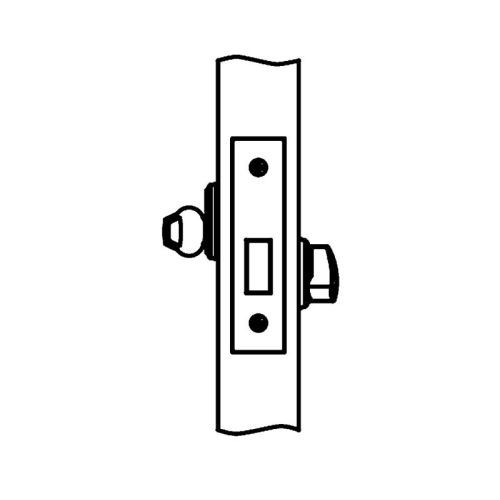

Mortise Deadbolt. Features Handing: Non-handed. Door Thickness: Standard- 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes. Backset: 2-3/4" (70mm). Lockcase: Heavy wrought steel; zinc dichromate finish. Front: Brass, bronze, stainless steel. 4-5/8"(117mm) x 1-1/8" (29mm). Adjustable for flat or beveled doors (bevel adjustment 1/8"(3mm) in 2"(51mm). Deadbolt: Steel with hardened pin; 1" (25mm) throw. Strike: Standard: wrought brass or bronze, 3-1/2" (89mm) x 1-1/8" (29mm). Optional strikes available. Cylinder: 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes. Keys: Two nickel silver standard. Keying Features Available: Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC) Warranty: One-year limited.
