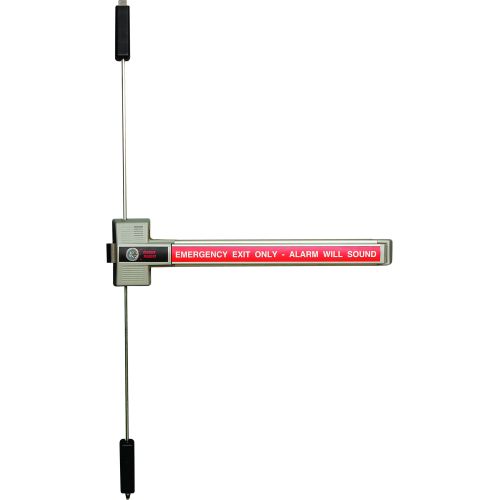

The ECL-230X-TDB is a code compliant, battery alarmed, rugged 3-point dead bolt , panic device with photo-luminescent sign providing maximum security and a 100 decibel alarm for secondary exits. Independent laboratory testing shows that the ECL- 230X-TDB can withstand up to 16,000 pounds of pull force.
More Information
Manufacturer Part Number
ECL-230X-TDB
Features
• 3-point, 1" throw dead bolt lock with just over 3/4” engagement with the frame, and 3/4” throw top and bottom locks with 5/8” engagement with the strike
• Saw resistant dead bolts
• Corrosion resistant alloy lock body
• 100 decibel alarm, powered by 9-volt battery (included)
• Surface/flush reversible strike
• Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar
• Durable photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed
• Locking and unlocking the dead bolt always arms and disarms the alarm
• Non-handed
• Low profile meets International Building Code requirement allowing for 4” maximum projection off face of door
• Resetting the alarm can only be accomplished with a control key
• For 9VDC hardwiring add BE-961-1 or BE-961-2
