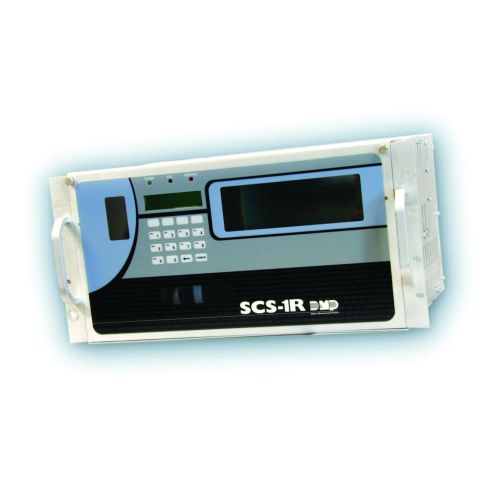

DMP SCS-1R Network Enabled Receiver
To realize the full benefits of DMP alarm panels, you will want to use a DMP Receiver. Facilitates panel trapping for unattended area code changes. UL approved for digital networking or dialer operation. Supports CallerID and Contact ID (CID) using the SCS- 104 line card. Boost income with revenue-producing features built into every DMP panel. Automatic daylight savings time update of all DMP panels. Unattended upload/download of all DMP panels network or dialer. No maintaining automation tables - full data through to automation SCS-1R is designed to meet the growing demand for network monitoring with flexible, expandable solutions.
Features | SCS-1R Network enabled receiver System Features • Up to eight line cards • Configure up to 32 digital dialer lines and eight network connections • 65,535 digital dialer accounts • 3,200 data network accounts • 5,000 event memory • 19” rack mountable • Line card slots can be configured for digital dialer and/or Network operation • Factory configured and ready for Ethernet communication • UL Standard Line or Encrypted Line Network Monitoring • Host Automation over Serial or Network • Supports DMP Cellular Communicators with no additional line cards to purchase • Includes AES Encryption • UL 864 Commercial Fire Monitoring • Membrane keyboard and 32-character LCD display • Full English readout on all alarm messages • Built-in processor watchdog and internal voltage monitors • Separate alarm message printer available • Optional output to automation computer • Browser Programming from any computer |
---|
SCS-1R Network enabled receiver System Features
• Up to eight line cards
• Configure up to 32 digital dialer lines and eight network connections
• 65,535 digital dialer accounts
• 3,200 data network accounts
• 5,000 event memory
• 19” rack mountable
• Line card slots can be configured for digital dialer and/or Network operation
• Factory configured and ready for Ethernet communication
• UL Standard Line or Encrypted Line Network Monitoring
• Host Automation over Serial or Network
• Supports DMP Cellular Communicators with no additional line cards to purchase
• Includes AES Encryption
• UL 864 Commercial Fire Monitoring
• Membrane keyboard and 32-character LCD display
• Full English readout on all alarm messages
• Built-in processor watchdog and internal voltage monitors
• Separate alarm message printer available
• Optional output to automation computer
• Browser Programming from any computer
