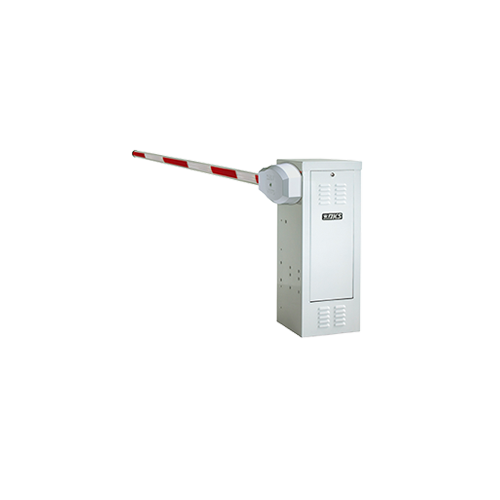

The Model 1601 is for high usage single-lane vehicular traffic control. Typical applications include commercial, industrial, gated communities and apartment complexes. A quick 1.5 second rotation opening time, along with rugged construction and multiple optional features make this 1601 a versatile answer to many parking control problems. The 1601 is available in white or gun metal gray finish.
These operators are designed so that they can be mounted on either the left or right hand side of the roadway. A battery powered Convenience Open option is available, which provides a method to open the gate if AC power is lost.
More Information
Manufacturer Part Number
1601-522
Features
Features:
Magnetic limit control.
Ports for plug-in loop detectors.
Automatic sequencing inputs for use with slide and swing gate operators.
Up input memory buffer.
Down memory option.
Multiple up commands.
Two convenience outlets.
360° gear box rotation.
Gate tracker reporting output.
Programming switches.
Built-in power On/Off switch.
Left or right hand mount.
Specifications:
1/2 HP continuous-duty motor.
115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
40:1 gear-box running in a continuous oil bath.
Arm rotates 90° in approximately 1.5 seconds.
Class II, III and IV applications.
Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, entrapment protection devices need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
Dimensions (operator only): 15.25"W x 39.5"H x 14.75"D.
Arm folding bracket for low headroom (Max arm length is 12 Ft).
DKS Pedestrian Protection System
Plug-in loop detectors.
DC powered convenience open.
Heater kit.
Fan kit.
Surge suppressors.
Manual Crank kit.
