The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.

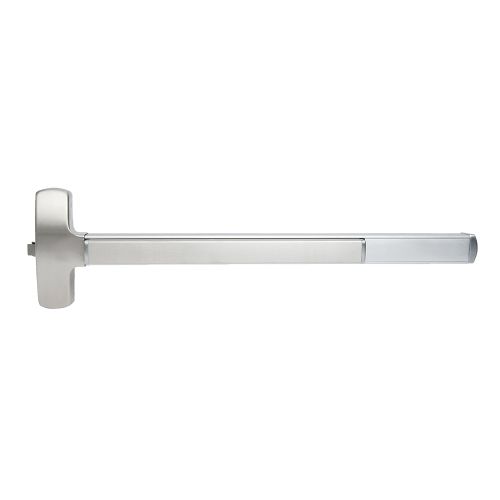

F25R-EO 3 628 Falcon Exit Device
Regular Price $1,673.00 -55% Special Price $749.50
Availability: Available for Order
SKU
FAL300F25REO328
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36" Fire Rated Device, Exit Only Function, Less Trim, Less Dogging, Satin Aluminum Clear Anodized Finish, Non-Handed
Description
Speicfications
| Series | 25 Series Exit Devices |
|---|---|
| Vendor | Allegion |
| Manufacturer | Falcon |
| ANSI | A156.3-2001 |
| Base Material | Aluminum |
| Fire Rating | Yes {Variable} |
| Grade | Grade 1 |
| Installation | Commercial |
| Finish Family | Matte Silver |
| Handing | Non-Handed |
| Door Thickness | 1-3/4" |
| UL Listing | "A" Label (3 hr.); 4'0" x 8'0"; 8'0" x 8'0" with F-4023 Mullion. "B" Label (1-1/2 hr.); 8'0" x 8'0"; with KRF4023. |
Details
Architectural wide-stile push pad exit devices providing quality and durability at an affordable price.
Features:
- Maximum flexibility in a variety of applications
- Wide range of features and options
- Patent pending deadlocking technology
Applications:
- Frequent traffic
- Offices, churches, hospitality, retail, education, healthcare
- Interior, exterior, new construction, retro-fit
A host of features makes this a smart solution, like a choice of an A or B label fire rating, electrified and panic options, and a full complement of trims. Sleek, streamlined styling and a choice of wide-stile device applications means a smart solution for your building design, as well as its use.
Instructions
- 510L-NL/510L-DT 513K-NL/513K-DT Installation Instructions
- Video: Falcon 25R Rim Exit Device Installation
- Falcon 25 FSA/FSE Trims Installation Instructions
- Falcon 24/25 Series Exit Alarm Kit Installation Instructions (Mfg before June 2021)
- Falcon 25-V/F-25-V Installation Instructions
- Falcon 25 Series 510L/510L-BE/513K/513K-BE Installation Instructions
- Falcon 25 Series 510L-NL/510L-DT/513K-NL/513K-DT Installation Instructions
- Falcon 25-C/F-25-C/F-25-C-WDC Steel Edge Construction Installation Instructions
- Falcon 25 Series 512TP/512TP-BE/512TP-DT/512NL Installation Instructions
- Falcon 250DT Dummy Bar Installation Instructions
- Falcon 25 Series Trim Parts Replacement 510L/510L-BE/513K/513K-BE/511L/512TP/512TP-BE Installation Instructions
- Falcon 25-WDC Wood Door Concealed Exit Device Installation Instructions
- Falcon 25-M/F-25-M Installation Instructions
- Falcon 25-R/F-25-R Installation Instructions
- Falcon F-25-C-WDC 5 Metal Wrap Edge Installation Instructions
- Falcon 24/25 Series Exit Alarm Kit Installation Instructions
- Falcon 24/25 Series GBK Installation Instructions
- Falcon 25-2 Double Cylinder Device and Retrofit Installation Instructions
- Ives VR810/VR814 Trim for Falcon 25-R/25-V Exit Devices Installation Instructions
