The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation's largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

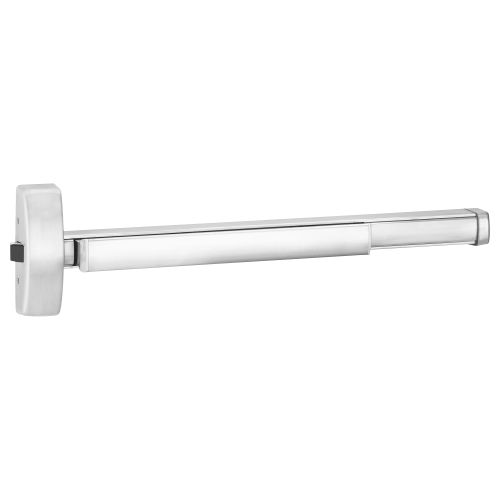

FL2103 630 36 PHI Exit Device
Regular Price $3,025.00 -50% Special Price $1,524.60
Availability: Available for Order
SKU
PRE200FL210363036
Grade 1 Fire Rated Rim Exit Device, Wide Stile Pushpad, 36" Device, Storeroom Function, Satin Stainless Steel Finish, Field Reversible
Description
Speicfications
| Series | 2100 Series Apex Rim Exit Devices |
|---|---|
| Vendor | DormaKaba |
| Manufacturer | PHI |
| ANSI | BHMA A156.3 Grade 1 Listed |
| BAA Qualified | Yes |
| Base Material | Stainless Steel |
| Fire Rating | 3 Hours {A} |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 5 Years |
| Origin | USA |
| Finish Family | Matte Silver |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" to 2-1/4" |
| UL Listing | UL 10C |
Details
Grade 1 exit devices that accommodate doors with vision lites or glass windows.
DOORS - For all types of single and double doors with a mullion. For mullions, see page 18. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening. For thicker doors, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide opening.
DEVICE - Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
FUNCTIONS - Functions are field selectable except for the Double Cylinder option. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.
DOUBLE CYLINDER - Handed, “10” Function available. Requires two rim type cylinders, not furnished standard. See page 5 and 19. BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components. See “Finish & Base Material” chart page 3. CHASSIS - Investment Cast Steel, Zinc Dichromated.
LATCHBOLT - Stainless Steel, Deadlocking, 3/4" throw. STRIKES - No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, please specify when ordering. No. S458, optional strike for use on Mullion applications, please specify when ordering. For optional strike information see page 34.
DOGGING - 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.
TOUCHBAR HEIGHT - 39-15/16" from floor standard. May be varied as situation dictates. R
EVERSIBLE - Reversible for all functions and Trims. Standard packaging RHRB.
UL LISTED - Panic and Fire Exit Hardware.
Conforms to UL10C and UBC 7-2.
ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.
FINISHES - 605, 606, 612, 613, 625, 628, 630
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.
