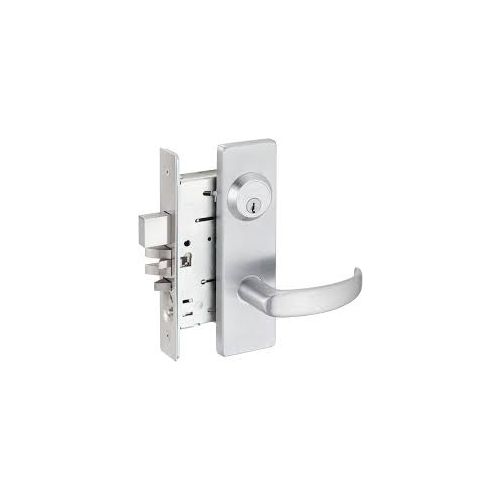

Falcon MA881B QG 626 24VDC Electrified Mortise Lock

Special Price $398.48

Regular Price $981.00 -59%

Availability: Available for Order

SKU

FAL-MA881BQG62624VDC

Falcon MA881B QG 626 24VDC Door Hardware

Electrified Mortise Lock, 24VDC, Fail Secure, SFIC Prep, Less Core, Quantum Lever, Gala Rose, Satin Chrome

More Information
Manufacturer Part Number	MA881BQG62624VDC
Features	Door thickness: Standard accommodates thickness of 1-3/8” to 2-1/2”. Backset: 2-3/4” only. Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available. Hubs: Hardened steel. Handing: Right hand is standard; left hand optional. Reversible in the field. Cylinders: Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard Keyways: “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening. Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection. Dead Bolt: 1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller. Faceplates: (Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs. Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed. Electrified Functions: Available in 12 or 24 VDC. ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000. UL: 3 hour A label.

Door thickness: Standard accommodates thickness of 1-3/8” to 2-1/2”.
Backset: 2-3/4” only.
Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
Hubs: Hardened steel.
Handing: Right hand is standard; left hand optional. Reversible in the field.
Cylinders: Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
Keyways: “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
Dead Bolt: 1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
Faceplates: (Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
Electrified Functions: Available in 12 or 24 VDC.
ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.
UL: 3 hour A label.
