Approved for use in Canada
Control switches for System Acknowledge, Signal Silence, Drill, and Reset
Control switches can be independently enabled or disabled at the FACP
Keyswitch enables/disables control switches and mechanically locks annunciator enclosure
Enclosure supervised for tamper
Local sounder can be enabled or disabled at the FACP
Displays device type identifiers, individual point alarm, trouble, supervisory, zone, and custom alpha labels
Surface mount directly to wall
Can be remotely located up to 6,000 feet (1,800 m) from the panel
Backlight turns off during AC loss to conserve battery power but will turn back on if an alarm condition occurs
More Information
Manufacturer Part Number
ANN-100
Features

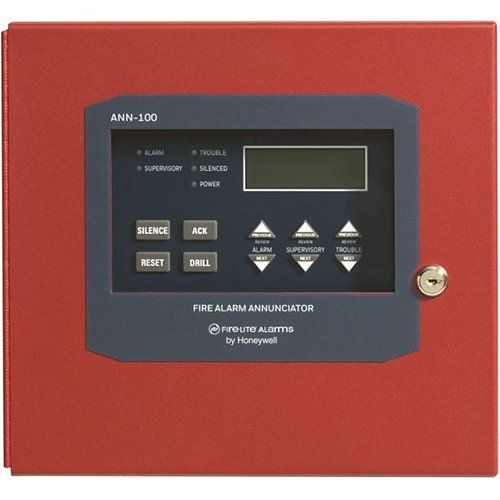

The ANN-100 annunciator is a backlit, 80-character LCD fire annunciator that mimics the Fire Alarm Control Panel (FACP) display. It provides system status indicators for AC Power, Alarm, Trouble, Supervisory, and Alarm Silenced conditions.
The ANN-100 and the FACP communicate over a two-wire serial interface employing the ANN-BUS communication format. Connected devices are powered, via two additional wires, by either the host FACP or a remote UL-listed, filtered power supply.
The ANN-100 displays English-language text of system point information including device type, zone, independent point alarm, trouble or supervisory status, as well as any custom alpha labels programmed into the control panel. It includes control switches for remote control of critical system functions. (A keyswitch prevents unauthorized operation of the control switches.)
Up to eight ANN-100s may be connected to each ANN-BUS of a FACP. No programming is required, which saves time during system commissioning.
Write Your Own Review
The ANN-100 annunciator is a backlit, 80-character LCD fire annunciator that mimics the Fire Alarm Control Panel (FACP) display. It provides system status indicators for AC Power, Alarm, Trouble, Supervisory, and Alarm Silenced conditions.
The ANN-100 and the FACP communicate over a two-wire serial interface employing the ANN-BUS communication format. Connected devices are powered, via two additional wires, by either the host FACP or a remote UL-listed, filtered power supply.
The ANN-100 displays English-language text of system point information including device type, zone, independent point alarm, trouble or supervisory status, as well as any custom alpha labels programmed into the control panel. It includes control switches for remote control of critical system functions. (A keyswitch prevents unauthorized operation of the control switches.)
Up to eight ANN-100s may be connected to each ANN-BUS of a FACP. No programming is required, which saves time during system commissioning.
