GRI-220-36HD Contact Switch Set

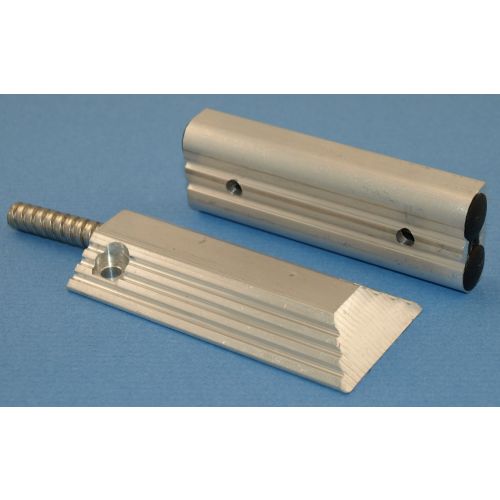

The G.R.I. 200 series is referenced and produced as an industrial grade floor mount switch. Primarily used for the protection of overhead doors where the operation of heavy motorized traffic would make it impossible to use any type of a plastic encapsulated switch. The 200 housing is extruded from a 6063 T5 aluminum material and tested to withstand a crushing force of 20,000 pounds or 10 tons without harming or causing failure of the delicate reed switch. All mounting hardware including lead anchors are provided as well as a mounting bracket for the actuating magnet. A 1/4” masonry bit is required for lead anchor installation.
**These are Special Order Contacts and are NOT Returnable
| Manufacturer Part Number | 8930 |
|---|---|
| Features | Hermetically Sealed Solid Tungsten Contacts Capable Of Extended Operation Applications In Extreme Environments With Aluminum Case and High Temperature Wire Capable Of Switching Power Loads Between Three And 100 Watts 18 AWG Wire To Accommodate Higher Current Loads (Gray Only) Excellent Match For Applications Needing a Reed Switch To Activate Higher Voltage Components; Lights, Blower Motors, Light Industrial Air Compressors, Home Water Fountains, Pumps, Etc. Available In A Variety Of Switch Styles. Reed Specifications |
Hermetically Sealed Solid Tungsten Contacts
Capable Of Extended Operation Applications In Extreme Environments With Aluminum Case and High Temperature Wire
Capable Of Switching Power Loads Between Three And 100 Watts
18 AWG Wire To Accommodate Higher Current Loads (Gray Only)
Excellent Match For Applications Needing a Reed Switch To Activate Higher Voltage Components; Lights, Blower Motors, Light Industrial Air Compressors, Home Water Fountains, Pumps, Etc.
Available In A Variety Of Switch Styles.
Reed Specifications
Power 100 Watts Maximum
Switching Current 120 VDC Maximum
Switching Current 3 Amp Maximum
Operating Temperatures - 40°F to 257°F
C-Form Reed S.P.D.T.
