Hager 9850 96 AL Heavy Duty Pocket Door Kit, Al For 4Ft X 8Ft Door 96 Inch Length Satin Aluminum
More Information
Manufacturer Part Number
9850 96 AL
Features
Product Specifications:

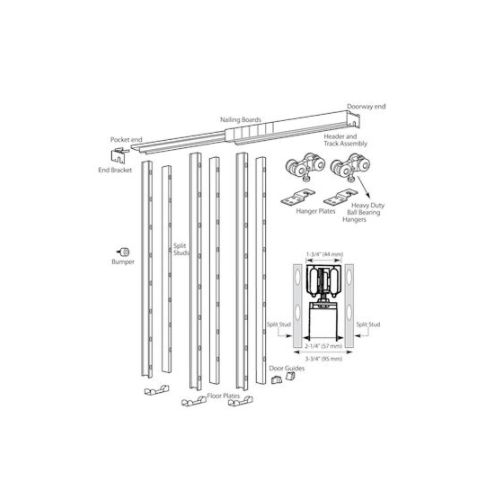

- For doors 1-3/8" - 1-3/4" (35 mm - 44 mm ) thick, up to 4'0" (1219 mm) wide and 8'0" (2438 mm) high - For door weighing up to 250 lbs. (113 kg) - Heavy-Duty, V-groove, jump-proof aluminum track - Pre-assembled header assembly goes up quickly - Three pair of wood split studs with wood inserts • Size 3/4" (19 mm) x 1-5/8" (26 mm) length relative to height • Steel encased for rigidity and to prevent fastener penetration into the pocket - Track header unit attaches to rough framing at both ends - Split studs can be nailed or screwed to track header
Installation:
- For Bi-Parting Doors use Hager Double Pocket Door Kit 9639 (sold separately) - Joins two pocket door frames to make one large doorway. Rough opening width changes to four times one door width.
Options:
- Available in 102" (2591 mm) at an extended lead time. Please contact Hager customer service for additional details.
