Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Low Profile, Fire Rated, Satin Stainless Steel

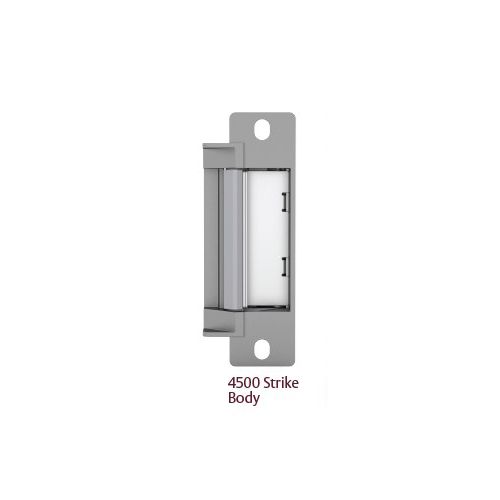

HES-4500C in 630 Finish The 4500C series electric strike is designed for installation in 2" UL 10C fire-rated frames with 1/2" drywall penetration. The 4500C features a low profile 1-3/8" depth, heavy-duty stainless steel construction. Its strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware. Each Complete Pac conveniently pares the reliability of an HES electric strike with the flexibility of multiple faceplates in a single simple package. The 4500C includes a 4500 strike body and two interchangeable faceplates to accommodate most cylindrical and mortise latchbolts (without deadbolts).
More Information
Manufacturer Part Number
4500C-630
Features
Standard Features
Stainless steel construction
Tamper resistant
Static strength 3,000 lbs.
Dynamic strength 100 ft-lbs.
Endurance 1,000,000 cycles
Field selectable fail safe/fail secure
Dual voltage 12 or 24 VAC/VDC
Two faceplates provided to accommodate a variety of locksets
Non-handed
Internally mounted solenoid
Accommodates up to a 3/4" latchbolt
Strike body depth 1-3/8"
Plug-in connector
Trim enhancer
Full keeper shims for horizontal adjustment
Five year limited warranty
