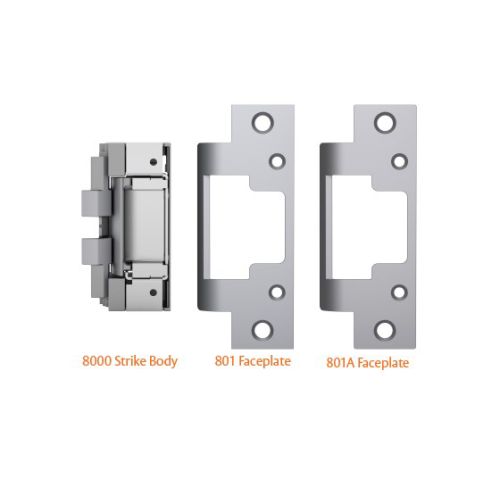

The 8000C is designed for easy installation with no cutting on the frame required. The 8000C has a concealed design, vertical adjustability and works with cylindrical locksets with a 5/8" throw latchbolt. Each Complete Pac conveniently pairs the reliability of HES electric strike with the flexibility of multiple faceplates in a single simple package. The 8000C includes an 8000 strike body, the 801 faceplate for cylindrical locksets in ANSI metal jambs and the 801A faceplate for cylindrical locksets or spring latches in aluminum frames.
More Information
Manufacturer Part Number
HES-8000C
Features
Specifications
UL 1034 burglary-resistant listed and suitable for outdoor use
ANSI/BHMA A156.31, Grade 1
Patent #5,934,720; 8,146,966; 8,157,302
Frame application
Metal
Wood
Electrical
.24 Amps at 12 VDC/VAC
.12 Amps at 24 VDC/VAC
DC continuous duty/AC intermittent duty only
Standard Features
No cutting on frame required
Vertical adjustability to accommodate door sag and misalignment
Tamper resistant
Static strength 1,500 lbs.
Dynamic strength 70 ft-lbs.
Endurance 500,000 cycles
Field selectable fail safe/fail secure
Dual voltage 12 or 24 VDC/VAC
Non-handed
Internally mounted solenoid
Accommodates 1/2"-5/8" cylindrical latchbolt (5/8" with 1/8" door gap)
Strike body depth 1-1/16"
Strike body width decreased to 1-7/16" to increase frame compatibility
Five year limited warranty
Write Your Own Review
Specifications
UL 1034 burglary-resistant listed and suitable for outdoor use
ANSI/BHMA A156.31, Grade 1
Patent #5,934,720; 8,146,966; 8,157,302
Frame application
Metal
Wood
Electrical
.24 Amps at 12 VDC/VAC
.12 Amps at 24 VDC/VAC
DC continuous duty/AC intermittent duty only
Standard Features
No cutting on frame required
Vertical adjustability to accommodate door sag and misalignment
Tamper resistant
Static strength 1,500 lbs.
Dynamic strength 70 ft-lbs.
Endurance 500,000 cycles
Field selectable fail safe/fail secure
Dual voltage 12 or 24 VDC/VAC
Non-handed
Internally mounted solenoid
Accommodates 1/2"-5/8" cylindrical latchbolt (5/8" with 1/8" door gap)
Strike body depth 1-1/16"
Strike body width decreased to 1-7/16" to increase frame compatibility
