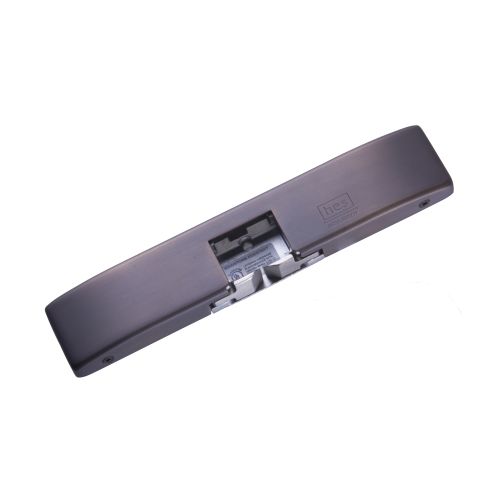

HES 9600 613 Complete 12/24VDC Electric Strike
Special Price $357.65 Regular Price $655.00 -45%
Availability: Available for Order
SKU
HAN1009600613
Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted, 3/4" Thickness, Oil Rubbed Bronze
Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted, 3/4" Thickness, Oil Rubbed Bronze
The 9600 Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw latch. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.
| Manufacturer Part Number | 9600 613 |
|---|---|
| Features | Frame application
Electrical
Standard Features
|
Write Your Own Review
Frame application
- Metal
- Wood
Electrical
- .45 Amps at 12 VDC continuous duty
- .25 Amps at 24 VDC continuous duty
Standard Features
- Installs in metal or wood frames
- Separate base and cover for easy adjustments
- Stainless steel construction
- Tamper resistant
- Static strength 2,000 lbs.
- Dynamic strength 120 ft-lbs.
- Endurance 1,000,000 cycles
- Field selectable fail safe/fail secure
- Dual voltage 12 or 24 VDC
- Horizontal adjustment
- Non-handed
- Internally mounted solenoid
- Accommodates up to 3/4" Pullman latch
- Five-year limited warranty
