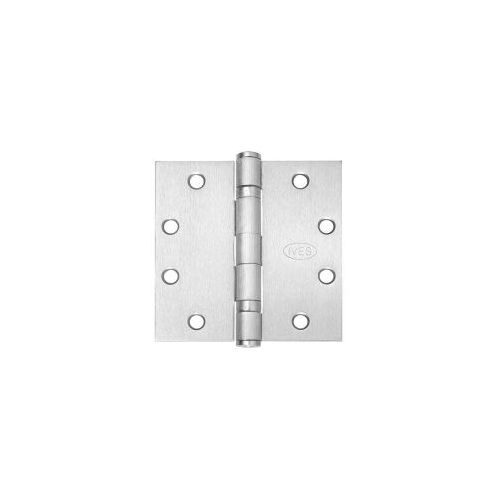

Ives 5BB1 4.5X4.5 652 TW8 CON 5-Knuckle Ball Bearing Hinge
Ives 5BB1 4.5X4.5 652 TW8 CON 5-Knuckle Ball Bearing Hinge
Special Price $302.69
Regular Price $593.50 -49% Availability: Available for Order
SKU IVE1005BB14.5X4.5652TW8CON
5-Knuckle Ball Bearing Hinge, Standard Weight, 4-1/2" x 4-1/2", 8-Wire, Connector, Satin Chrome
5-Knuckle Ball Bearing Hinge, Standard Weight, 4-1/2" x 4-1/2", 8-Wire, Connector, Satin Chrome
More Information | Manufacturer Part Number | 5BB1 4.5X4.5 652 TW8 CON |
|---|
| Features | 5-Knuckle Ball Bearing Hinge, Standard Weight, 4-1/2" x 4-1/2", 8-Wire, Connector, Satin Chrome
- Recommended for medium weight doors (less than 150 Lbs.)
- Recommended for medium-frequency usage(less than 400 cycles per day)
- Made with two ball bearing assemblies
- Recommended for use with a door closer
- Packed with fasteners for hollow metal and wood doors:
- 12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS
- 10-24 x 1/2 UFPHMS, 10 x 1 FPHWS (3.5x3.5 hinge size only)
- Certified to ANSI/BHMA A156.1 for performance standards
- Meets ANSI/BHMA 156.7 for template hinge dimensions
- UL Classified for windstorm rated assemblies - R37965
- UL Listed, 3 hour fire doors
- Made from brass, 1040 steel, or 304 series stainless steel
|
|---|
5-Knuckle Ball Bearing Hinge, Standard Weight, 4-1/2" x 4-1/2", 8-Wire, Connector, Satin Chrome
- Recommended for medium weight doors (less than 150 Lbs.)
- Recommended for medium-frequency usage(less than 400 cycles per day)
- Made with two ball bearing assemblies
- Recommended for use with a door closer
- Packed with fasteners for hollow metal and wood doors:
- 12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS
- 10-24 x 1/2 UFPHMS, 10 x 1 FPHWS (3.5x3.5 hinge size only)
- Certified to ANSI/BHMA A156.1 for performance standards
- Meets ANSI/BHMA 156.7 for template hinge dimensions
- UL Classified for windstorm rated assemblies - R37965
- UL Listed, 3 hour fire doors
- Made from brass, 1040 steel, or 304 series stainless steel
