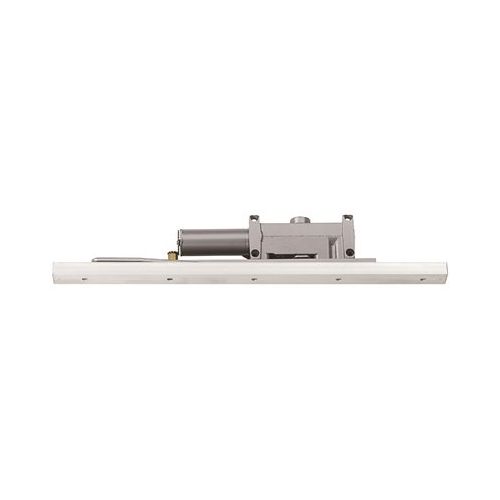

LCN 2214-STD LH AL Standard Track Door Closer
The heavy-duty 2210 Series is a high-security track closer that features complete concealment and special components to resist tampering and vandalism. The 2210 Series meets ANSI/BHMA A156.4 Grade 1, meets the American Disabilities Act (ADA) reduced opening force requirements and is UL and cUL listed for self-closing doors, Grade 1. It is backed by a 15-year limited warranty.
Forged steel, a single-lever arm and a heavy steel mounting plate are designed for correctional, institutional and other high-traffic locations. The high-strength cast iron cylinder mounts in the head frame. Materials include a one-piece forged steel piston; double-heat-treated pinion; high-efficiency, full-complement low-friction bearings; tamper-resistant regulating screws; and all-weather fluid.
Manufacturer Part Number | 2214-STD LH AL |
---|---|
Features | Body construction
Quality and durability
Installation
|
Body construction
- Cast iron design
- Forged steel arm
- Double heat-treated steel pinion
Quality and durability
- All-weather fluid
- Vandal resistant
- 15-year warranty
Installation
- Security cover
- Torx machine screw pack
- Adjustable spring power sizes 3-5
