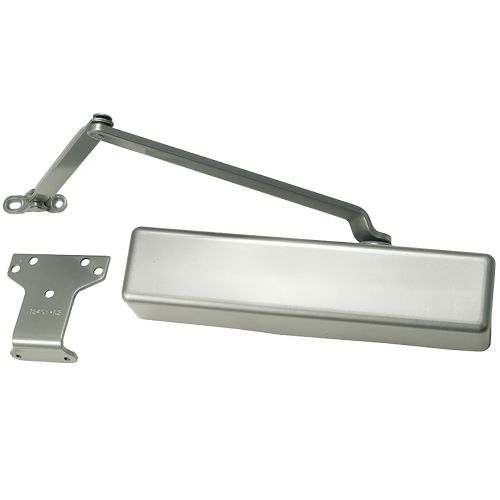

1461-RW/PA 689 FC LCN Door Closers and Operator

Regular Price $609.00 -46% Special Price $327.40

Availability: Available for Order

SKU

LCN1001461RwPAALFC

Grade 1 Tri Mount Surface Closer, Push or Pull Side, Double Lever Arm Regular, Full Plastic Cover, 180 Deg. Swing, With Parallel Arm Bracket, Aluminum Painted Finish, Non-Handed

Description

The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.

Speicfications

More Information
Series	1460 Series Surface Mounted Closers
Vendor	Allegion
Manufacturer	LCN
Color	Aluminum Painted
BAA Qualified	Yes
Base Material	Varies
Grade	Grade 1
Installation	Commercial
Limited Warranty	30 Years
Finish Family	Matte Silver
Cover	Full Plastic
Degree Swing	180 Deg.
Handing	Non-Handed
Hold Open	No
Mounting Group	Hydraulic
Mounting Location	Push or Pull Side
Mounting Style	Tri Mount
Type	Surface

Details

Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.

Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
Multiple cover options include; Standard (Slim line), Full and Designer Series
Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
Closer meets ADA requirements
Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
Optional SRI primer for installations in corrosive conditions

1461 Series Features

Universal, fully reversible, non-handed door closer
Closer cylinder constructed of high strength cast iron for increased durability
Tested to 2,000,000 cycles
Fully adjustable 1-6 spring strength to suit door size and site conditions
Factory set to strength 3
Standard closer offers 3 installation options
- Regular (pull side)
- Top jamb (push side)
- Parallel arm (push side)
Independent adjustment valves for adjusting backcheck, closing and latching speeds
All adjustment valves are concealed behind the cover to prevent tampering
Joints in arms and shoe brackets adapt to uneven mounting surfaces
Stick-on template for fast, accurate installation. Cuts installation time in half
Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop

The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.
