8501 689 Norton Door Closers and Operator

Regular Price $614.00 -73% Special Price $165.04

Availability: Available for Order

SKU

NOR3008501689

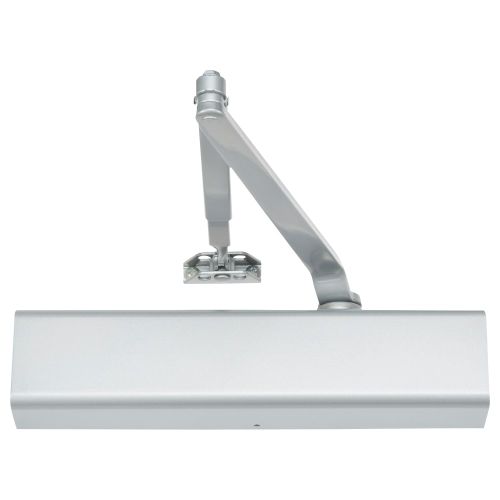

Grade 1 Tri Mount Door Closer, Push or Pull Side, Double Lever Arm Regular, Adjustable Size 1 to 6, Plastic Cover, Aluminum Painted Finish, Non-Handed

Description

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge. The 8000 Series Door Closers exceed 10 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed. A slim-line plastic cover is standard with the 8301 closer and a full plastic cover is standard with the 8501 closer.

Speicfications

More Information
Series	8501 Series Closers
Vendor	ASSA Abloy
Manufacturer	Norton
ANSI	ANSI A156.4
BAA Qualified	Yes
Fire Rating	3 Hours {A}
Grade	Grade 1
Installation	Commercial
Limited Warranty	25 Years
Origin	USA
Finish Family	Matte Silver
Arm Type	Double Lever Arm, Regular
Back Check	Adjustable
Closer Size	1 to 6
Cover	Plastic
Handing	Non-Handed
Hold Open	No
Mounting Group	Hydraulic
Mounting Location	Push or Pull Side
Mounting Style	Tri Mount
Type	Surface
UL Listing	UL 10C

Details

Architectural Tri-Style® door closer.

Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
Closers shall be non-handed to permit installation on doors of either hand. Closer fluid shall contain lubricity and anti-oxidation agents.
Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
[Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
