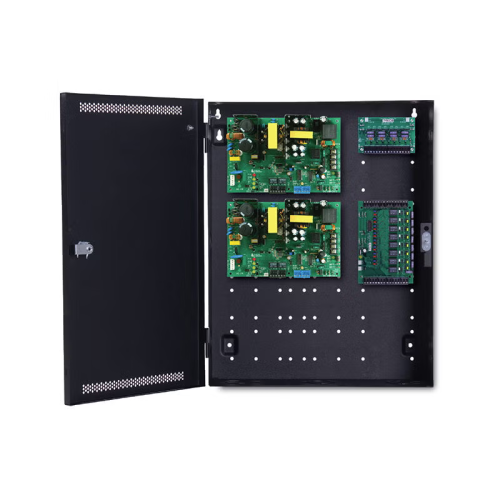

LifeSafety Power FPO75-B100C4D8PE2M Dual Voltage 6A/12V Power Supply Board, 75W
The FLEXPOWER FPO75-C4E1 is a single voltage, offline switchmode power supply-battery charger system specifically designed for the access control segment of the lifesafety industry. The unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space, and provides one power supply which can be set to 12 or 24V. Four access controlled trigger inputs control four relay based lock outputs, with each output programmable for fire alarm disconnect, failsafe, failsecure, or dry contact operation. Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and power supply status.
| Manufacturer Part Number | FPO75-B100C4D8PE2M |
|---|---|
| Features | Product OverviewMCLASS™ Unified Power Systems combine FlexPower® power modules alongside Mercury Security™ access hardware in one compact and secure UL Listed solution. What’s Included
Main Features
General InformationName: LifeSafety Power FPO75-B100C4D8PE2M Dual Voltage 6A/12V Power Supply Board, 75W
Category: LifeSafety Power, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 811711026162
Country of Origin: United States. Country of origin is subject to change.
|
Product Overview
MCLASS™ Unified Power Systems combine FlexPower® power modules alongside Mercury Security™ access hardware in one compact and secure UL Listed solution.
This unit is a 12V and 24V DC dual voltage access power system.
The C4 lock control module provides four access control inputs capable of voltage or dry contact activation and outputs programmable for failsafe / failsecure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. One D8P module provides eight auxiliary class II outputs and each output is configurable for 12 or 24VDC operation.
MCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.
What’s Included
- FlexPower FPO75-B100C4D8PE2M 75W Power Supply
- Lock
- 2 x Keys
- Tamper Switch
Main Features
- Converts current to the desired voltage and frequency to manage your power requirements
- The constant 12V DC ensures smooth functioning
- Providing up to 75W maximum output power
- Predrilled and tapped holes for access panel mounting
- Mounting hardware included
- Single enclosure solution reduces wall space requirements
- Removable backplate for easy installation
- Includes lock, two (2) keys and tamper switch
- Single AC drop
