LifeSafety Power FPO75-C4E1M 75W, 4 Door Access 6A/12V or 3A/24V 4 Lock Outputs

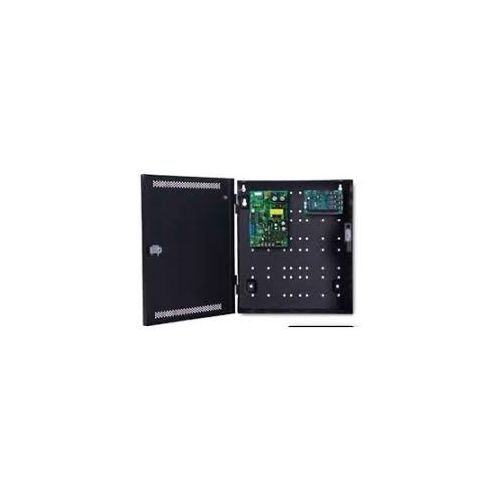

The FLEXPOWER FPO75-C4E1 is a single voltage, offline switchmode power supply-battery charger system specifically designed for the access control segment of the lifesafety industry. The unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space, and provides one power supply which can be set to 12 or 24V. Four access controlled trigger inputs control four relay based lock outputs, with each output programmable for fire alarm disconnect, failsafe, failsecure, or dry contact operation. Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and power supply status.
| Manufacturer Part Number | FPO75-C4E1M |
|---|---|
| Features | Agency Listed for Access Control, Fire, Security, CCTV, and Mass Notification
FlexPower ® Feature Set
SureCharge Microprocessor controlled battery charging
PowerCom Power supply programming / monitoring software
VSelect Installer selectable output voltage
TruWatt Delivers twice the current at 12V than at 24V
PwrHealth Intelligent battery charging and battery state monitoring
FlexConnect Dual voltage bus / pre-wired accesory board interconnects
Reliability+ Full fault protection / high efficiency / fiberglass pcb
GreenSmart RoHS compliant, lead free, energy efficient design
DataLink Network communication interface option
System Features
Fully modular power management system Multiple outputs for system power, direct lock control and accessory power distribution modules
Each distributed output is selectable for either continuous or switched DC in single voltage systems, or 12/24VDC in dual voltage systems
Fire alarm interface for egress lock control (FAI)
Configurable fail-safe / fail-secure modes of operation
Comprehensive fault detection and reporting including optional earth ground and battery presence
AC and System fault output relays can be delayed via PowerCom
Microprocessor dual rate charging restores battery sets from 4 to 40Ah
Power Management & Reporting (U.S. Patent 8,566,651)
PowerCom® s/w monitors, programs, and reports on power supply core functions through a computer USB or network connection
NetLink module option connects power system to a LAN/WAN network for remote programming and live diagnostics. NetLink monitors and reports power status, tests battery state and alerts via email/SNMP on system faults, AC loss, low battery or pre-scheduled service due |
Agency Listed for Access Control, Fire, Security, CCTV, and Mass Notification
FlexPower ® Feature Set
SureCharge Microprocessor controlled battery charging
PowerCom Power supply programming / monitoring software
VSelect Installer selectable output voltage
TruWatt Delivers twice the current at 12V than at 24V
PwrHealth Intelligent battery charging and battery state monitoring
FlexConnect Dual voltage bus / pre-wired accesory board interconnects
Reliability+ Full fault protection / high efficiency / fiberglass pcb
GreenSmart RoHS compliant, lead free, energy efficient design
DataLink Network communication interface option
System Features
Fully modular power management system
Multiple outputs for system power, direct lock control and
accessory power distribution modules
Each distributed output is selectable for either continuous or switched
DC in single voltage systems, or 12/24VDC in dual voltage systems
Fire alarm interface for egress lock control (FAI)
Configurable fail-safe / fail-secure modes of operation
Comprehensive fault detection and reporting including optional
earth ground and battery presence
AC and System fault output relays can be delayed via PowerCom
Microprocessor dual rate charging restores battery sets from 4 to 40Ah
Power Management & Reporting (U.S. Patent 8,566,651)
PowerCom® s/w monitors, programs, and reports on power supply
core functions through a computer USB or network connection
NetLink module option connects power system to a LAN/WAN network
for remote programming and live diagnostics. NetLink monitors and
reports power status, tests battery state and alerts via email/SNMP on
system faults, AC loss, low battery or pre-scheduled service due
