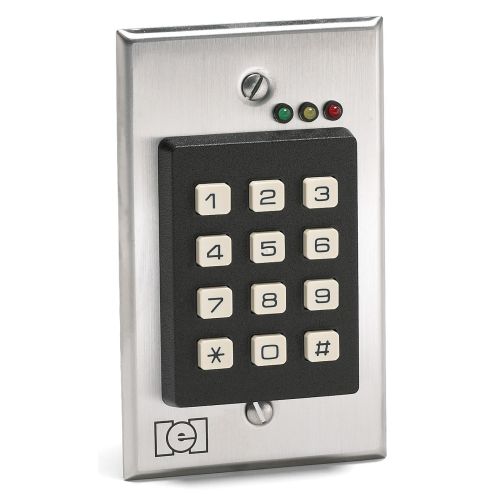

Nortek Security and Control 212I Indoor Flush-Mount Keypad, 120 Users, Single Gang Design, 1 SPDT 2 amp Relay and three 50mA Negative Voltage Outputs, Indoor Use Only
Indoor Flush-Mount Keypad, 120 Users, Single Gang Design, 1 SPDT 2 amp Relay and three 50mA Negative Voltage Outputs, Indoor Use Only
Affordable single door access control keypad designed to meet the indoor flush mount needs of lighter volume access control environments. There are three LED’s to indicate operation status and provide the user with visual PIN entry confirmation. The i style keypad mounts to most standard single-gang electrical back boxes.
More Information
Manufacturer Part Number
212I
Features
Features
120 users
Single gang design
1 SPDT 2 amp relay and three 50mA negative voltage outputs
Optional 293 relay board converts 3 voltage outputs to SPDT relays
Indoor use only
Functionality mode: 212, 232
Specifications
Operating voltage: 12-24 VAC/VDC – auto adjusting
Dimensions: 2.75″ W x 4.50″ H x 1.3 ” D
Dimensions including the 293 relay module: 2.75″ W x 4.50″ H x 1.68″ D
Current draw: 94 mA maximum (add 30 mA for each relay)
Temperature tolerance: -20F to 130F
