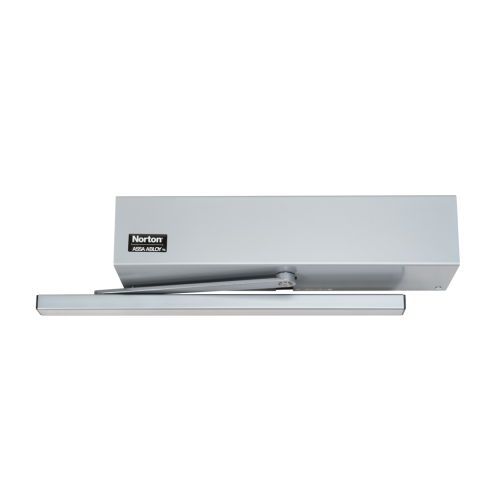

Norton 5610 689 The 5600 Series, part of the POWERMATIC??? Family of Operators, offers functionality and control at an affordable price. Ideal for retrofit applications, the 5600 Series converts interior, non-fire rated doors for ADA compliance easily and affordably and provides a simple way to achieve touchless environments in public restrooms. Available for push or pull mounting, this unit can be operated manually or activated by wall switches, or radio frequency devices. Easy to install, set-up and adjust, the 5600 Series is perfect for ADA-compliant offices, classrooms and dorm rooms, and touch free applications like public restrooms, labs and examination rooms.
The 5600 Series, part of the POWERMATIC Family of Operators, offers functionality and control at an affordable price. Ideal for retrofit applications, the 5600 Series converts interior, non-fire rated doors for ADA compliance easily and affordably and provides a simple way to achieve touchless environments in public restrooms. Available for push or pull mounting, this unit can be operated manually or activated by wall switches, or radio frequency devices. Easy to install, set-up and adjust, the 5600 Series is perfect for ADA-compliant offices, classrooms and dorm rooms, and touch free applications like public restrooms, labs and examination rooms.
More Information
Manufacturer Part Number
5610 689
Features
Push or pull side mounting
Non-handed
Quiet operation
Electrically controlled backcheck, sweep and latch
Activation options: wall switches, radio frequency devices
Ease of installation and set-up
On/Off Switch
Hold open options: 0-30 seconds (5 seconds minimum required for ADA and ANSI/BHMA A156.19)
Onboard 24VDC (1.1A) power supply for accessories
Door closer mode for manual usage
Electronic motor dampening - provides feel of normal, manual door closer
Electric hardware and access control interface
Optional AC power cord
Functions
Push & Go - as the door is manually opened, the operator "senses" movement and opens door to the full-open position.
Obstruction Detection - motor stops if door is obstructed during opening
Overload Safety Shut-Off - After two minutes of receiving a door activation signal, the inverter will time out - Prevents motor/inverter damage
Motor Start Delay - 0-5 second delay to allowing locking hardware to release first
Executive Kit - kit shipped with a transmitter and RF receiver
'Hands-Free' Kits - operator shipped with wave-to-open switch and option of electric strike for mortise or cylindrical lock
Benefits
Affordable functionality: simply opens and closes the door to automate interior, non-fire rated doors
Ideal for retrofit applications: easy installation and optional AC power cord effortlessly converts openings for barrier free accessibility
Consistent and dependable: quiet electromechanical operation meets ADA requirements and provides easy access
Hands-free operation: ideal for public restrooms or upgrading openings for ADA compliance when used with touchless wall switches
Typical Applications
Touchless applications – Public restrooms – Laboratories – Examination rooms
Retrofit applications to meet ADA – Offices – Classrooms – Dorm rooms
Electrical Data
Relay Output: SPDT - Normally Open/Normally Closed (jumper) - For electric strike function
Power Input; 120 VAC, 60Hz
Current Draw: .6A
Auxiliary Output: 24VDC @ 1.1A
Certifications
ETL certified; conforms to ANSI/UL standard 325 for automatic closing doors
Meets requirements for Americans with Disabilities Act (ADA)
1-year limited warranty
