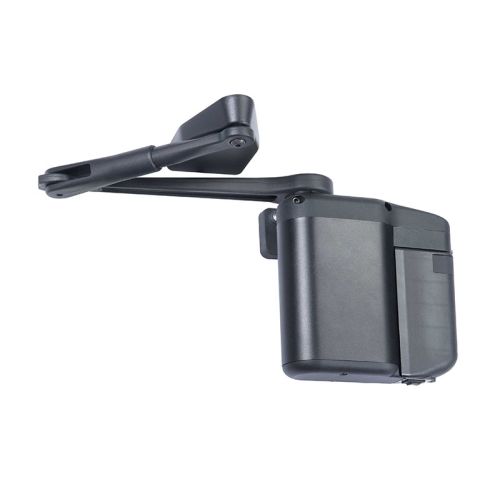

Norton 5845xNPB 693T Door Operator
As one of the world’s only regenerative power door operators, Norton’s ADAEZ Series is certified by GreenCircle to reduce energy consumption by as much as 100 percent versus other comparable operators. Available in wireless and plug-in versions and able to fit in the tightest of spaces, the 5800 ADAEZ is simple to install and use.
Kit includes ADAEZ PRO Door Operator (Push or Pull Side, Double Lever and Parallel Arms), ADA1015P Hardwire Kit, Two Narrow Style Push Buttons, Pull Side Regular Arm, Black Textured Powder Coat
| Manufacturer Part Number | 5845xNPB |
|---|---|
| Features | Regenerative drive or continuous duty operation |
Regenerative drive or continuous duty operation
Non-handed
95° max. door opening
Push and pull side mounting
Push-and-Go (ADA1015P Kit must be connected)
Power Close (ADA1015P Kit must be connected)
Radio Frequency stainless steel push buttons
Integral RF receiver
Shock absorbing arm
693T (black) and 689 (aluminum) covers
24 VDC input port
ADA1015P hardware kit
Built-in ON/OFF Switch
Auxiliary activation input port
Maximum door width - 48"
Maximum door weight - 250 lbs
Patented Auto-Tune feature ensures safety and compliance with A156.19 code
