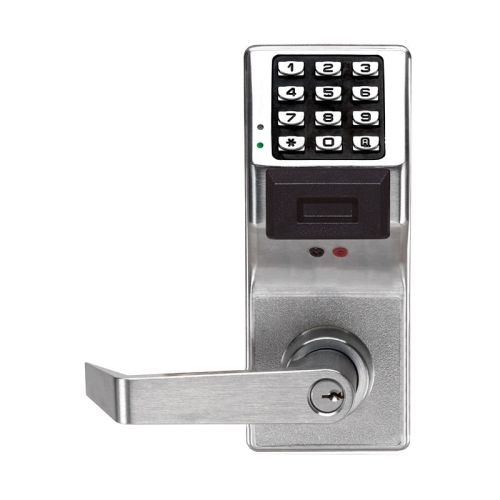

PDL3000 US10B Alarm Lock Access Control
PDL3000 PIN/Prox Cylindrical High Security Locks 2000 user codes (3-6 digits) and/or accepts HID prox cards and keyfobs Multilevel security - Master; manager; supervisor; basic users Easy Tap & Add batch ID card enrollment mode allows many cards to be quickly added without PC -also- downloadable from PC or enroller tool 40,000 event audit trail log 150 scheduled events PC programming/reporting Quick passage mode (without being in program mode) Weatherproof -31deg to +151degF (-35deg to +66degC) 5AA Battery operated; 60,000 cycles, typ.
| Manufacturer Part Number | PDL3000 US10B |
|---|---|
| Features |
common time schedules in one step
individually programmed to use a card only, code only, or for the highest security, both card and code. (3-6 digits) and/or accepts HID prox cards and key fobs.
(-35°C to +66°C)
door access activity by user
6 or 7 pin cores from Arrow, Best, Falcon or KSP. Other IC core preps available.
(US5), polished chrome (US26), satin chrome (US26D), duronodic (US 10B).
added without PC - also downloadable from PC or enroller tool. |
- Rugged clutch mechanism and Grade 1 durability ensure long life.
- 500 scheduled events, including 4 quick schedules for programming the 4 most
common time schedules in one step
- 2000 user codes including: Master, manager, supervisor, and basic user. Users are
individually programmed to use a card only, code only, or for the highest security,
both card and code. (3-6 digits) and/or accepts HID prox cards and key fobs.
- Weatherproof performance, operational temperature range of -31°F to +151°F
(-35°C to +66°C)
- Entry allowance from 3-15 seconds
- Greater security with temporary keypad lockout after 6 unsuccessful code entry attempts
- Up to 40,000 event audit trails with time/date stamp for a printable record of
door access activity by user
- Real time clock allows logging of events to within 1 second of accuracy.
- Programmable relays energize when one or more selected events occur.
- Easy to install in about an hour retrofits most cylindrical locksets and digital locks.
- Battery operated; uses 5 AA batteries; 60,000 cycles, typical.
- Available in standard key override and interchangeable core models accepting
6 or 7 pin cores from Arrow, Best, Falcon or KSP. Other IC core preps available.
- Available in standard Trilogy lever set (straight) or with regal (curved) lever
- Available in six finishes; polished brass (US3), satin brass (US4), antique brass
(US5), polished chrome (US26), satin chrome (US26D), duronodic (US 10B).
- Tap & add batch ID; card enrollment mode allows many cards to be quickly
added without PC - also downloadable from PC or enroller tool.
