A53PD ORB 626 E Keyway 2 3/4 backset

Be the first to review this product

Special Price $169.25

Regular Price $315.00 -46%

Availability: Available for Order

SKU

A53PD ORB 626 E Keyway 2 3/4

Notify me when the price drops

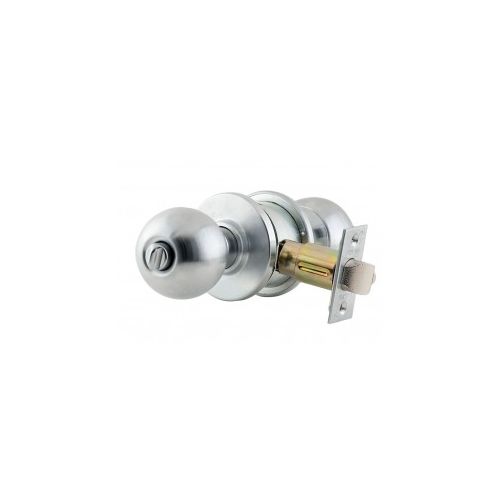

A53PD ORB 626 E Keyway 2 3/4 backset Grade 2 Entrance Cylindrical Lock, Orbit Knob, Conventional Cylinder, Satin Chrome Finish, Non-handed

Schlage A53PD ORB 626 2 3/4 backset Grade 2 Entrance Cylindrical Lock, Orbit Knob, Conventional Cylinder, Satin Chrome Finish, Non-handed

More Information
Manufacturer Part Number	A53PD ORB 626 E Keyway 2 3/4 backset
Features	Product Specs Vendor Allegion Manufacturer Schlage SKU A53PD ORB 626 UID SCH100A53PDORB626 Grade Grade 2 Installation Commercial Origin Mexico Unit of Measure Each Base Material Brass, Bronze UL Listing Type ANSI A156.2-2011, Series 4000, Grade 2, UL Listed ANSI Number F109 Limited Warranty 3 Year Warranty Fire Rated 3 Hours {A} Burglar Rated No Finish Finish 626/US26D Finish Description Satin Chrome Finish Family Matte Silver Technical Specs Function 53-Entrance Lock Function Family Entrance ANSI Function F109 - Entry/Office Lever/Knob Design ORB - Orbit Knob Lever/Knob Design Family Ball Knob Rose/Escutcheon Design 2-9/16" Rose Diameter Rose/Escutcheon Dimensions 2-9/16" Cylinder Type Conventional Cylinder Num Pins 6 Key(s) Cut Num of Keys 2 Handing Non-handed Door Thickness 1-3/8" to 1-7/8" Std. Latch Number 11-085 Std. Latch Type Deadlatch Std. Latch Backset Dim 2-3/8" Latch Bore Diameter 7/8" Lock Face Size 1" x 2-1/4" Bolt Projection 1/2" Bore Hole Diameter 2-1/8" Std. Strike Number 10-001 Std. Strike Type T-Strike Std. Strike Height 2-3/4" Std. Strike Width 1-1/8" Dust Box Plastic Screws Wood/Metal Screws Product Type Cylindrical Lock Dimensions Product Product Length 9.5" Product Width 8.25" Product Height 4.75" Package Package Length 9.5" Package Width 8.25" Package Height 4.75" Package Volume 372.28 Package Qty 1

Product Specs Vendor Allegion Manufacturer Schlage SKU A53PD ORB 626 UID SCH100A53PDORB626 Grade Grade 2 Installation Commercial Origin Mexico Unit of Measure Each Base Material Brass, Bronze UL Listing Type ANSI A156.2-2011, Series 4000, Grade 2, UL Listed ANSI Number F109 Limited Warranty 3 Year Warranty Fire Rated 3 Hours {A} Burglar Rated No Finish Finish 626/US26D Finish Description Satin Chrome Finish Family Matte Silver Technical Specs Function 53-Entrance Lock Function Family Entrance ANSI Function F109 - Entry/Office Lever/Knob Design ORB - Orbit Knob Lever/Knob Design Family Ball Knob Rose/Escutcheon Design 2-9/16" Rose Diameter Rose/Escutcheon Dimensions 2-9/16" Cylinder Type Conventional Cylinder Num Pins 6 Key(s) Cut Num of Keys 2 Handing Non-handed Door Thickness 1-3/8" to 1-7/8" Std. Latch Number 11-085 Std. Latch Type Deadlatch Std. Latch Backset Dim 2-3/8" Latch Bore Diameter 7/8" Lock Face Size 1" x 2-1/4" Bolt Projection 1/2" Bore Hole Diameter 2-1/8" Std. Strike Number 10-001 Std. Strike Type T-Strike Std. Strike Height 2-3/4" Std. Strike Width 1-1/8" Dust Box Plastic Screws Wood/Metal Screws Product Type Cylindrical Lock Dimensions Product Product Length 9.5" Product Width 8.25" Product Height 4.75" Package Package Length 9.5" Package Width 8.25" Package Height 4.75" Package Volume 372.28 Package Qty 1
