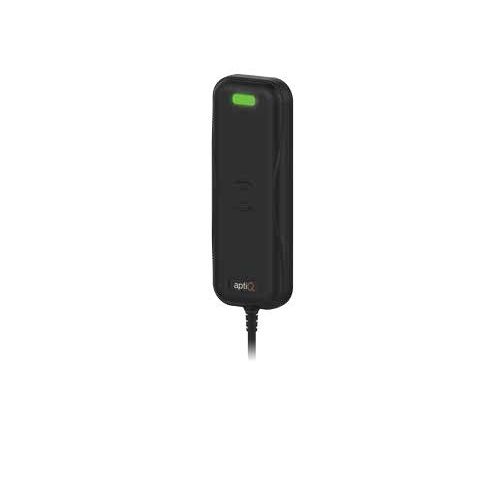

Schlage MT20W Multi-Technology Enrollment Reader USB
MT20 Multi-technology enrollment reader with ENGAGE technology
The Schlage MT20 USB multi-technology enrollment reader with ENGAGE™ technology is designed to simplify your enrollment process. The MT20 simplifies the enrollment of proximity, smart or mobile credentials in an access control system by using a computer’s USB connection. The MT20 does not require software to operate when using a USB connection and will function on any operating system. When using the ENGAGE Web Application, the MT20 will automatically output the data in the expected format. The USB connection emulates a keyboard and will keystroke the facility code and badge ID from the credential to the cursor’s location on the screen.
The MT20 is compatible with Schlage smart credentials (MIFARE® Classic and MIFARE DESFire™ EV1), aptiQmobile™ credentials and most proximity credentials.
| Manufacturer Part Number | MT20W |
|---|---|
| Features | Features and benefits Use your computer and the ENGAGE web app to easily enroll credentials in your access control system
|
Features and benefits
Use your computer and the ENGAGE web app to easily enroll credentials in your access control system
Recognizes aptiQ smart credentials (MIFARE® Classic and MIFARE DESFire™ EV1), aptiQmobile credentials and most proximity credentials
Limited Lifetime Warranty
Model MT20 Reader type: USB Software and operating system requirements
Bit formats recognized: 26A, 32X, 34N, 34S, 35C, 37X, 37H, 40X
Technologies supported: Schlage Proximity XceedID™ Proximity HID® Proximity GE/CASI ProxLite® AWID® Proximity LenelProx®Schlage MIFARE® Secure Sector XceedID™ MIFARE® Secure Sector aptiQ™ Smart Cards using MIFARE DESFire™ EV1 with PACSA DESFire® CSN HID iClass® CSN Inside Contactless PicoTag® CSN ST Microelectronics® CSN Texas Instruments Tag-It® Serial Number Phillips I-Code® CSN 5.56" x 2.00" x .695"
Operating temperatures: 0 to 40 C
Weight 4.1 oz
Power supply: Connect to powered USB port or via USB power supply Interface
USB Current requirement: 160 mA
Default configuration: CE-401-073, for use with ENGAGE web applicaton
Octal output: CE-401-061, for use with SMS Express
