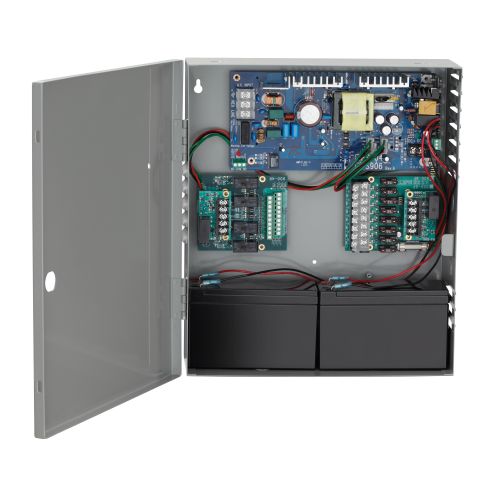

Schlage’s comprehensive line of power supplies and option boards were designed to address the changing needs of the access control market. Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This new design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified strikes, electromagnetic locks, card readers, etc). Common to the line of PS900 Series power supplies is a constant output rating at both 12v and 24v settings, universal 120 VAC to 240 VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal provided. * All PS900 Series of power supplies and option boards have been tested and certified to meet UL294.

More Information
Manufacturer Part Number	PS904
Features	PS906 6 amp Power Supply • 4A @ 12/24 VDC output, field selectable with jumper • Universal 120 -240 VAC input • Low voltage DC, regulated and filtered • Three polarized connectors for distribution boards • Fused primary input • AC input and DC output monitoring circuit w/ LED indicators • Cover mounted AC input indication • NEMA 1 enclosure • Hinged cover w/ lock down screws • High voltage protective cover

Write Your Own Review

PS906 6 amp Power Supply

• 4A @ 12/24 VDC output, field selectable with jumper

• Universal 120 -240 VAC input

• Low voltage DC, regulated and filtered

• Three polarized connectors for distribution boards

• Fused primary input

• AC input and DC output monitoring circuit w/ LED indicators

• Cover mounted AC input indication

• NEMA 1 enclosure

• Hinged cover w/ lock down screws

• High voltage protective cover
