DK-26BK Securitron Readers, Keypads, Credential

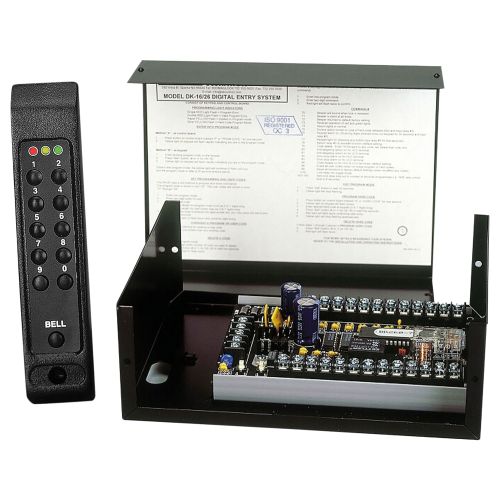

The DK-26 digital keypad system provides medium/high security control of electric locks in one or two door applications where doors have the same control needs. The fully weatherproof, rugged stainless steel keypad can be mounted in most outdoor environments. Encased in a separate enclosure for secure installation, the full-featured, easy to program, DK-26 is ideal for narrow stile applications. Cast stainless steel with 11 EPDM rubber keys. Weatherproof and vandal resistant. 12V or 24V/ AC or DC current. Mounts on a narrow mullion. Audible keystroke echo. True 10 digit operation (keys are not paired). 59 users with multiple entry codes. User code and hard code disable feature. Passage Mode and Lockout Mode. 5A DPDT relay. Request to exit (REX) input. 16 ft. [4.8m], 12 conductor, 22 gauge keypad cable. 3 LEDs and a bell button. Keypad: 1-1/2"W x 7"H x 7/8"D. Enclosure: 6"W x 8"H x 3"D. CPU opereating tempuratur +32 to +158F [0 to +70C], keypad operating temperature -22 to +158F [-30 to +70C]. Indoor or Outdoor use.
