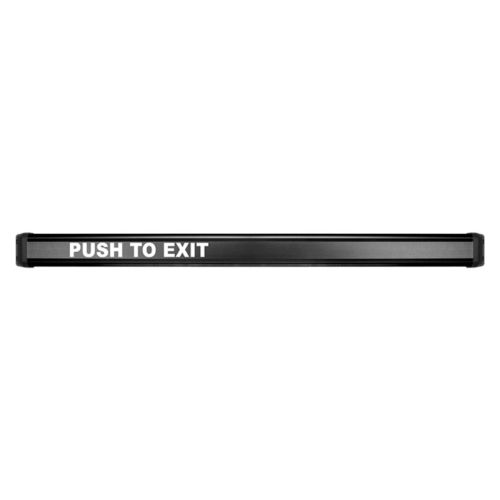

Use the Electromechanical Exit Bar (EMB) on magnetically locked, non-fire-rated doors or as an initiate device for a delayed egress timer. Pressing the bar activates internal mechanical switches that release the lock. Optional waterproof switches are available, which allow the EMB to function in protected outdoor applications. Meets "no special tools or knowledge" criteria for code requirements. Low profile design requires only 1/4" movement for activation. Can be field cut to accommodate non-standard openings up to 48". Uses same mounting pattern as the TSB and DSB. Direct retrofit for some competitor footprints. Mechanical action activates a DPDT 5A rated output to allow free egress or initiate an exit delay timer. Redundant switches ensure reliable, fault-tolerant operation. All metal construction. 16 ft. [4.8m] 22AWG 6 conductor cable and armored door cord included. Electromechanical Bar, 36 In., Black
More Information
Manufacturer Part Number
EMB-BK
Features
Low profile design requires only 1/4" movement for activation
Three standard lengths: 36", 42" or 48"
Can be field cut to accommodate non-standard openings up to 48"
Uses same mounting pattern as the TSB-3 and DSB
Retrofits to most competitors mounting patterns
Activates a DPDT 5 Amp rated output when pushed which will allow free egress or initiate the delay on an exit delay timer
Four individual switches ensure reliable, redundant operation
All metal construction
16 ft. [4.8m] 22AWG 6 conductor cable and armored door cord included
UL Listing
MagnaCare® lifetime replacement, no fault warranty
Specification Data
Operating Temperature: -4 to +185F [-20 to +85C]
Shipping Weight: 7 to 9 lbs. depending on length
