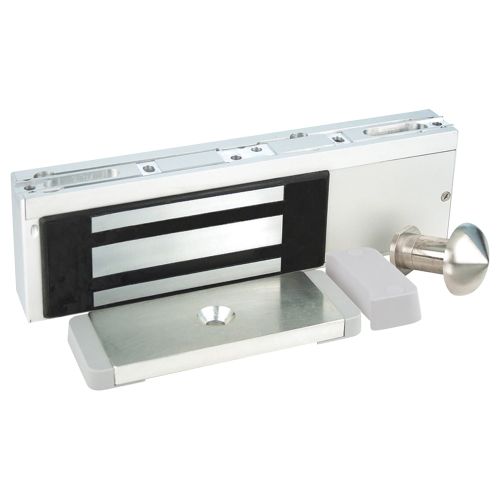

IMXDA Securitron Electric Strikes, Bolts, Magnet

Prevent losses at emergency exits with IEXDA and IMXDA. An attempted exit initiates an alarm and a brief delay before the lock releases, giving personnel time to respond before an exit occurs. Protect memory care wards, hospitals, dormitories, airports, child care facilities and retail or warehouse environments. Used on out- swing doors, installation requires no alteration or replacement of existing fire-rated or non-fire-rated latching hardware. Fully integrated delay and detection features for fast installation of delayed egress system . Easily adjustable door movement detection from 1/8" [3.2mm] to 1" [25mm]. Bracket mounted for ease of installation. Automatic dual-voltage, no field adjustment required. Permits free egress in emergency situations. Efficient, low power usage. Compact 12-1/2" length can be used with most door closers. Easily visible LEDs indicate status on secure side of door. Advanced intelligent microprocessors provide alarm options and trainable door movement detection to minimize false alarms. Nuisance alarm times - 0 to 3 seconds. Irrevocable delay times - 15 or 30 seconds - user selectable. External bypass delay times - 0, 5,10, or 15 seconds. Post alarm reminder - user selectable. Bypass expiration alarm - user selectable. Manual relock or delayed automatic relock (BOCA) - user selectable. External alarm relay isolated dry contact (1A at 24 VDC). External reset. Rust resistant - all ferrous metal surfaces plated for durability.
