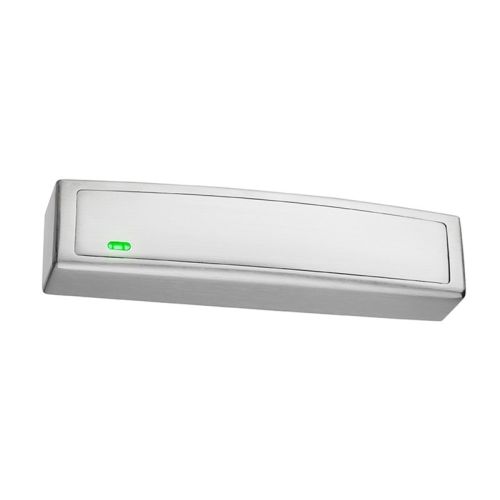

Securitron M670

The M670 from Securitron delivers unsurpassed style and ease of installation. The aesthetics of the M670 are refined enough for the most discriminating designer openings. The fastest, easiest, most secure installation of any bracket mount maglock. Bracket mounting provides the easiest install for out-swing doors. Innovative templating for an effortlessly accurate alignment between magnet and armature plate. Sleek, low profile and refined lines for improved aesthetics. LED shows red or green for lock status indication. Autosensing dual-voltage with microprocessor technology. Wire chamber anti-tamper switch. Efficient, low power usage. Size optimized for use with door closers. Holding Force: 1,100 lbs [499 kg]. Dimensions: Magnalock: 11-1/2"L x 2-9/16"D x 2-1/2"H, Strike: 9-1/2"L x 1/2"D x 2"H. Electrical: 575 mA (� 10%) at 12 VDC, 275 mA (� 10%) at 24 VDC. Operating Temperature: +32 to +110F [0 to +43C]. Indoor use only. Maglock, 1100lb Holding Force, 12/24VDC, Satin Aluminum Clear Anodized
