DK-16P Securitron Readers, Keypads, Credential

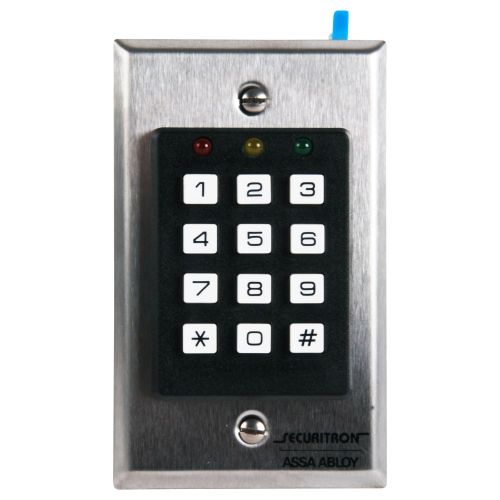

DK-16P is the keypad only for the DK-16 digital keypad system. Provides medium/high security control of electric locks in a one or two-door application where both doors have the same control needs. The tamper-resistant 3x4 keypad provides true 10-key operation for use and programming. 12 VAC/VDC: 7 mA at rest; 160 mA active 24 VAC/VDC: 20 mA at rest; 190 mA active. 12 key 3x4 keypad with engraved and paint filled numbers. Stainless steel plate. Red, green and yellow LEDs for status and programming feedback. Audible keystroke echo 12 VAC/VDC: 7 mA at rest; 160 mA active 24 VAC/VDC: 20 mA at rest; 190 mA active. Keypad operating temperature +32 to +110F [0 to +43C] Indoor use only. Keypad: 2-3/4"W x 4-1/2"H x 5/32"D..
