SDC LR100DAK Electric Latch Retraction Kit
Special Price
$409.80
Regular Price
$683.00
-40%
Availability: 3 available for order
SKU
SDC-LR100K2K

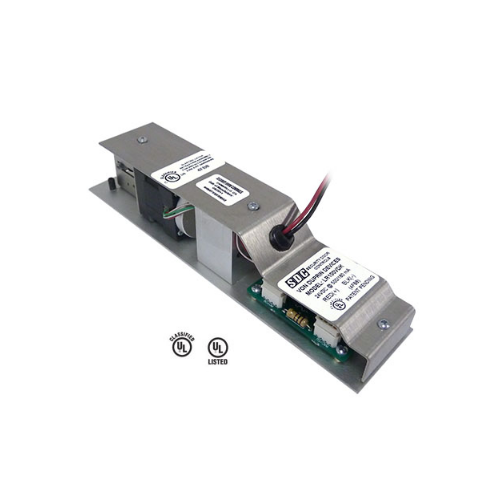

Security Door Controls SDC-LR100K2K ELECTRIC LATCH RETRACTION
The SDC LR100 Series Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door. The latch retraction mechanism may be activated by an access control, remote control device or building automation system. The exit device always provides uninhibited egress.
| Manufacturer Part Number | LR100K2K |
|---|---|
| Features |
|
Write Your Own Review
- 700 mA Inrush**, 200 mA Continuous @ 24VDC
- For access control and sustained dogging applications
- Simultaneous latch retraction and dogging (pushpad depressed) for most exit devices*
- Pushpad is depressed* electrically for quieter push / pull operation
- Automatic re-trigger if device does not pull on first try
- Eliminates need for costly replacement of existing exit device
- Significantly less labor and costs compared to competitive retrofit kits
- Low current enables longer wire runs with smaller gauge wire
- No door sequencers required for pairs of manual doors
- Installs in Von Duprin non-fire rated panic device without removing from the door
