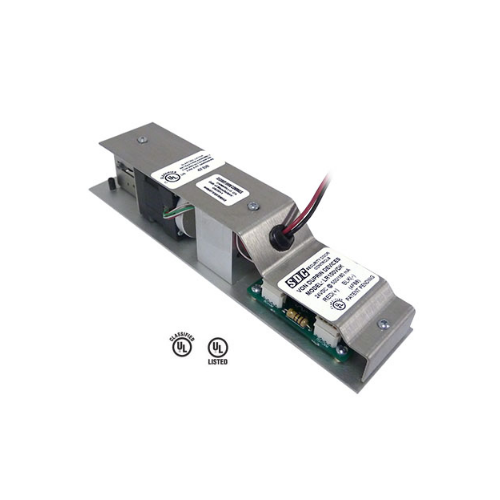

The SDC LR100 Series Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door. The latch retraction mechanism may be activated by an access control, remote control device or building automation system. The exit device always provides uninhibited egress.
More Information
Manufacturer Part Number
LR100K2K
Features
700 mA Inrush**, 200 mA Continuous @ 24VDC
For access control and sustained dogging applications
Simultaneous latch retraction and dogging (pushpad depressed) for most exit devices*
Pushpad is depressed* electrically for quieter push / pull operation
Automatic re-trigger if device does not pull on first try
Eliminates need for costly replacement of existing exit device
Significantly less labor and costs compared to competitive retrofit kits
Low current enables longer wire runs with smaller gauge wire
No door sequencers required for pairs of manual doors
Installs in Von Duprin non-fire rated panic device without removing from the door
