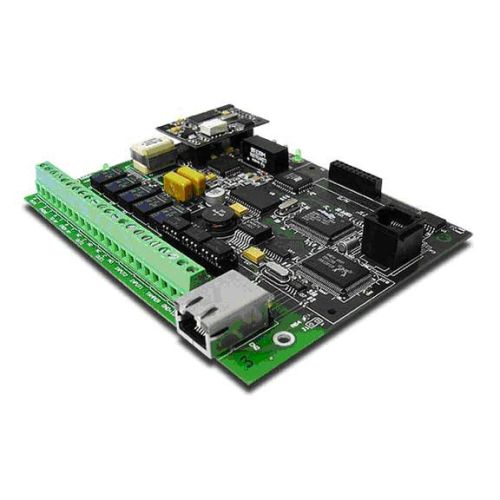

Silent Knight SK-IP-2 IP Communicator

• Listed to UL Standard 864.
• Eliminates the cost of two dedicated phone lines. Only the
customer’s shared IP equipment is required.
• Can use newer low-cost, non-analog, digital telephone
services such as cable or fiber optics.
• Increases connection supervision to the central station
from the once-a-day test signal to once every 30 - 90
seconds.
• Requires no change to the existing panel configuration.
The IP Communicator connects directly to the primary and
secondary analog panel telephone ports.
• Fast alarm transmission (less than 10 second
transmission time).
• Works over any type of customer-provided Ethernet
10/100 Base network connection (LAN or WAN), DSL
modem or cable modem.
• Data transmits over standard contact-ID protocol but is
secured with the industry’s highest level of encryption
(AES 512 bit).
• Supports both dynamic (DHCP) or Public and Private
Static IP addressing.
• Supports dual-destination IP receiver address for high
redundancy configurations: all signals are sent to a
secondary address should the primary become
unavailable.
• User programmable UDP ports for flexibility and compatibility
with firewalls and other network security components.
• Supports an optional third maintenance receiver installed
at the end user’s facility that permits local alarm
monitoring. Alarms are received simultaneously at both the
central station and the customer’s facility. A filter can be
applied to annunciate specific alarm types such as
trouble-only events.
• Supports upload/download using existing, familiar
programming tools.
• Two supervised inputs and two outputs
• RJ45X Ethernet Termination
